Spare parts BlueMax Mini (machine model: Type 3, Modular, Modular Plus)
Here you will find spare parts for our BlueMax machines. If you cannot find the spare part number you are looking for, contact your Hettich contact person, please.
| Article | PU | Order no. | ||
|---|---|---|---|---|
| 970008264 | ET 1570 Bowex coupling 1,3 kW motor (drilling unit ø10 mm / motor ø19 mm) | 1 ea. | 77741 | |

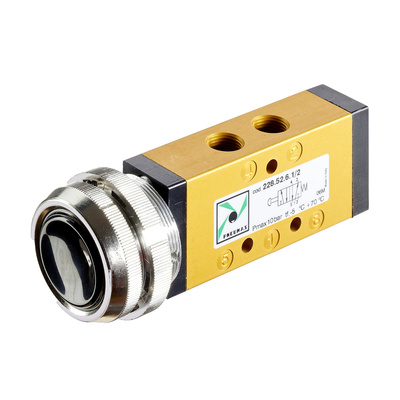

| 970008284 | SP 1656 5/2 way pushbutton valve 1/8" | 1 ea. | 78874 | |

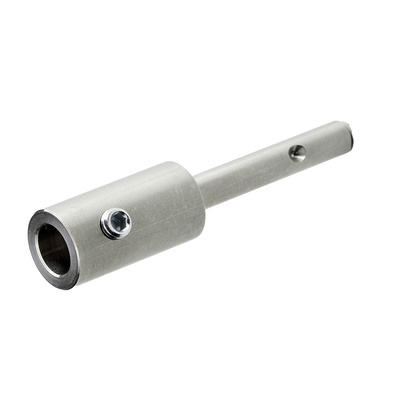

| 970008300 | SP 1182 Special secondary spindle | 1 ea. | 77489 | |
|
970008308 | FENCE 2000 M SCAL | 1 ea. | 75070 |

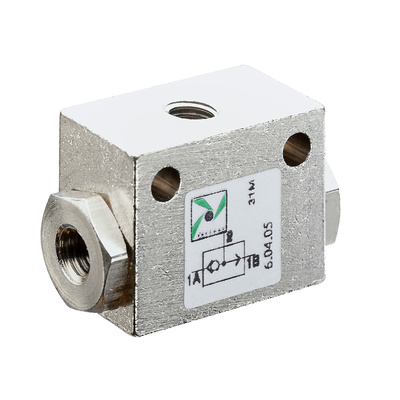

| 970008324 | SP 1954 Orvalve M5 | 1 ea. | 70614 | |

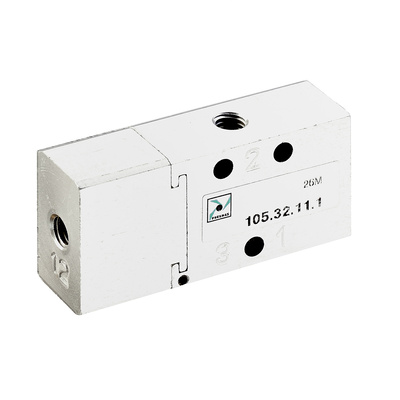

| 970008328 | SP 1779 3/2-Portvalve M5 | 1 ea. | 70613 | |

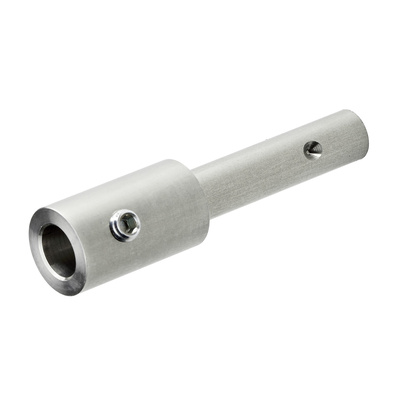

| 970008348 | SP 1103 Secondary spindle with clamping chuck | 1 ea. | 4807022 | |
| 970008356 | SP 1104 Main spindle with clamping chuck | 1 ea. | 76205 | |
| 970008368 | SP 1741 Bolt for down-hold clamp | 1 ea. | 78002 | |
|
|
970008380 | Connecting element | 1 ea. | 75073 |
|
|
970008384 | clamping block | 1 ea. | 75074 |
|
|
970008388 | SCREW DIN 912/8.8, M8x10 mm VZ | 1 ea. | 75075 |

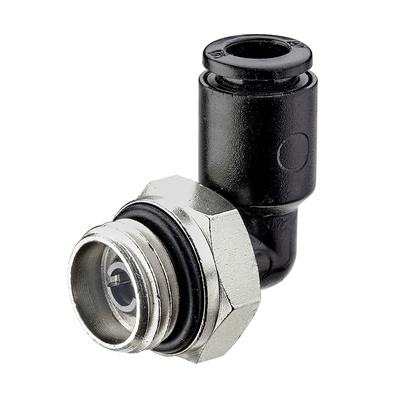

| 970008392 | SP 1659 Elbow screw connection 1/4" | 1 ea. | 76509 | |

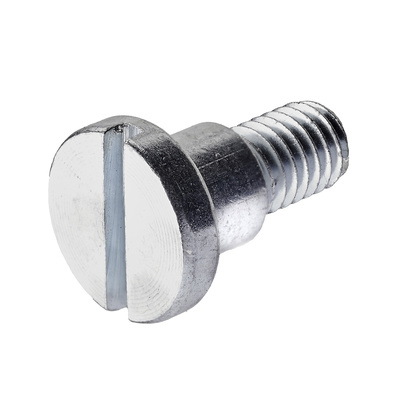

| 970008396 | SP 1118 Flat head screw with slot | 1 ea. | 77488 | |

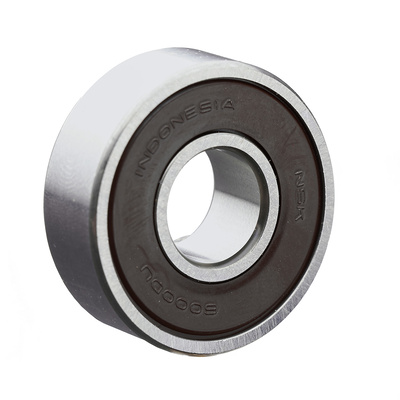

| 970008400 | SP 1151 Deep groove ball bearing | 1 ea. | 77745 | |

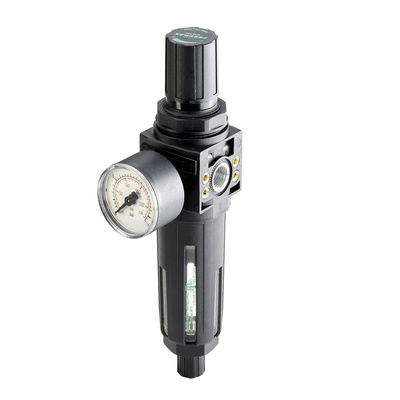

| 970008408 | SP 1665 Servicing unit 1/4' | 1 ea. | 74983 | |

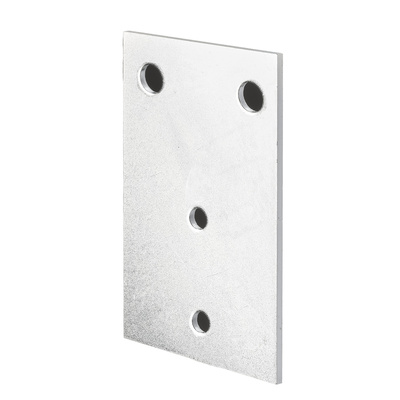

| 970008412 | SP 1112 Guide plate | 1 ea. | 76492 | |

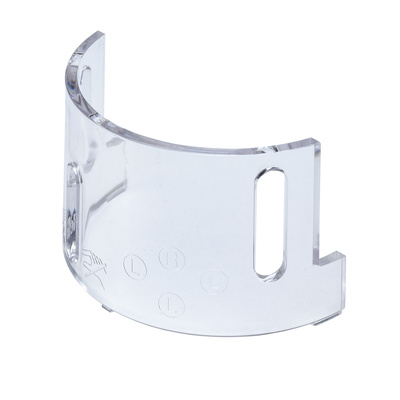

| 970008436 | SP 1117 Safety shield | 1 ea. | 76495 | |

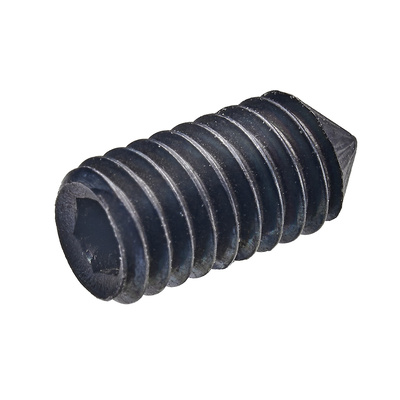

| 970008440 | SP 1173 Threaded pin M4x8 | 1 ea. | 76503 | |

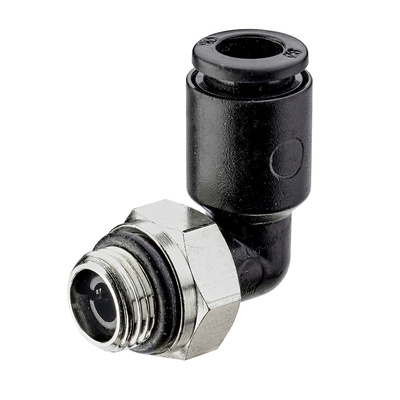

| 970008448 | SP 1660a Elbow screw connection 1/8" | 1 ea. | 76510 | |
| 991017673 | ET 1680 A Electropneumatic switch | 1 ea. | 77747 | |

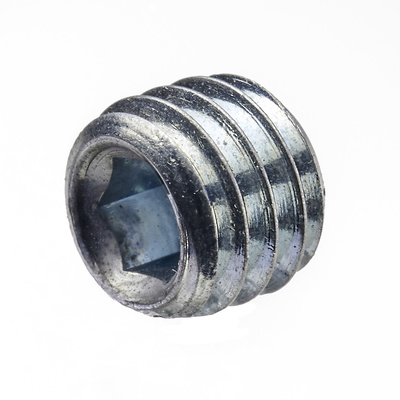

| 991018912 | SP 1165 Threaded pin M5X4 | 1 ea. | 47347 | |

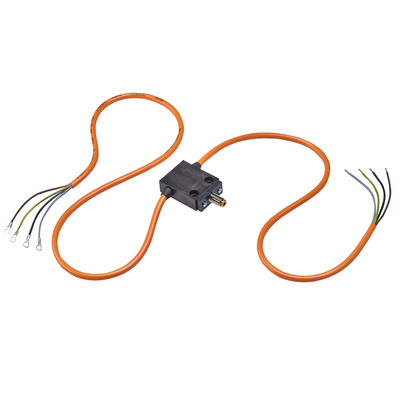

| 991019131 | SP 1680 C Electropneumatic switch | 1 ea. | 78947 | |
| 991019135 | SP 1680B Electricpneumatic switch | 1 ea. | 10777 | |
| 991019139 | SP 1106 Pinion Z=32 | 1 ea. | 76490 | |

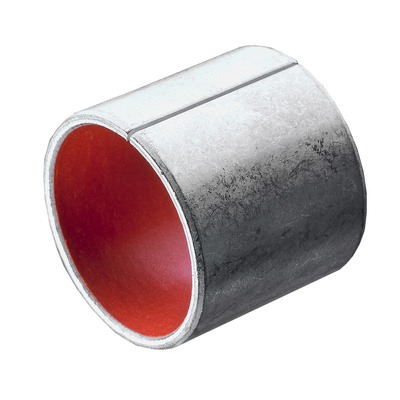

| 991019155 | SP 1152 Bush | 1 ea. | 78876 |
