Show differences only
|
Systems
|

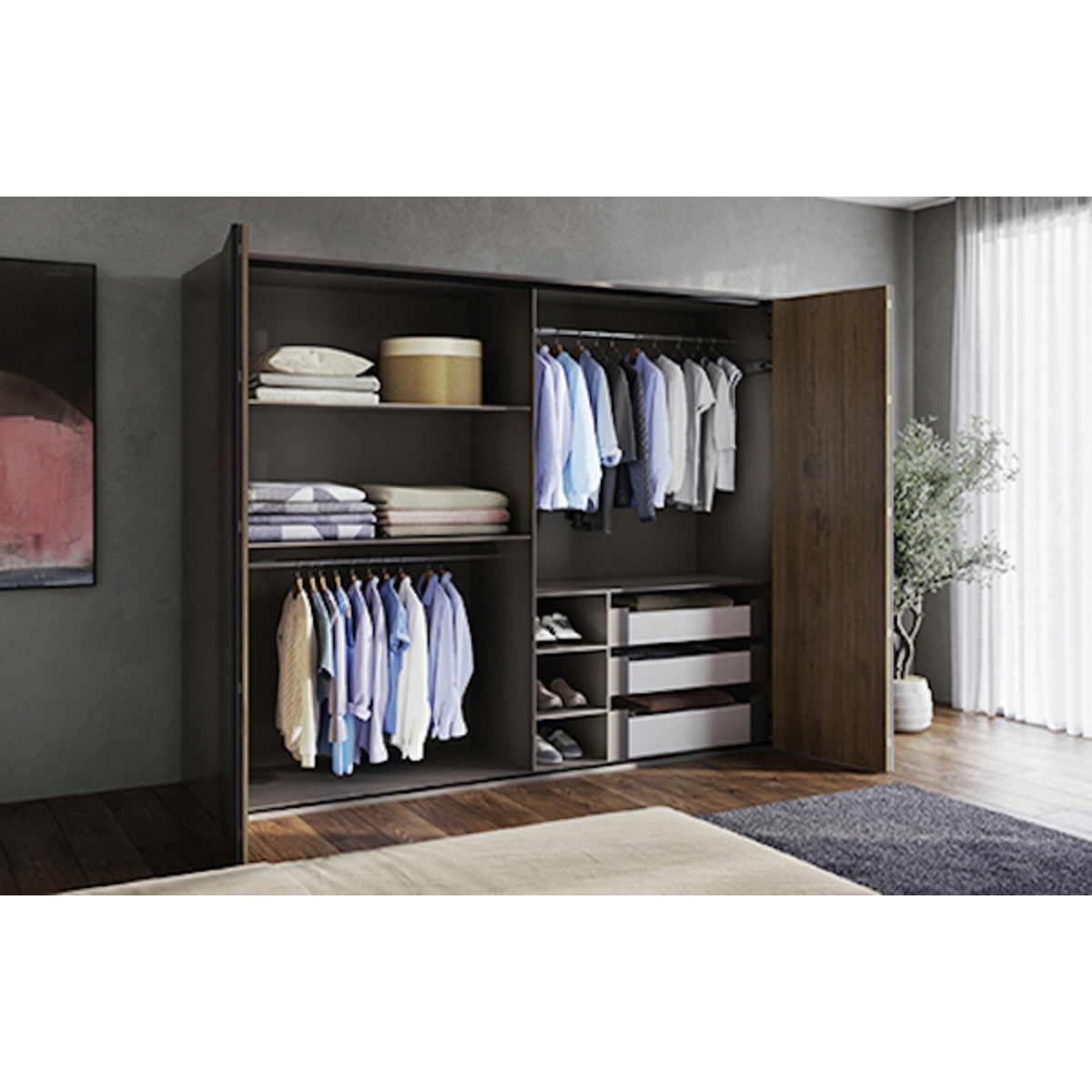

WingLine L
|

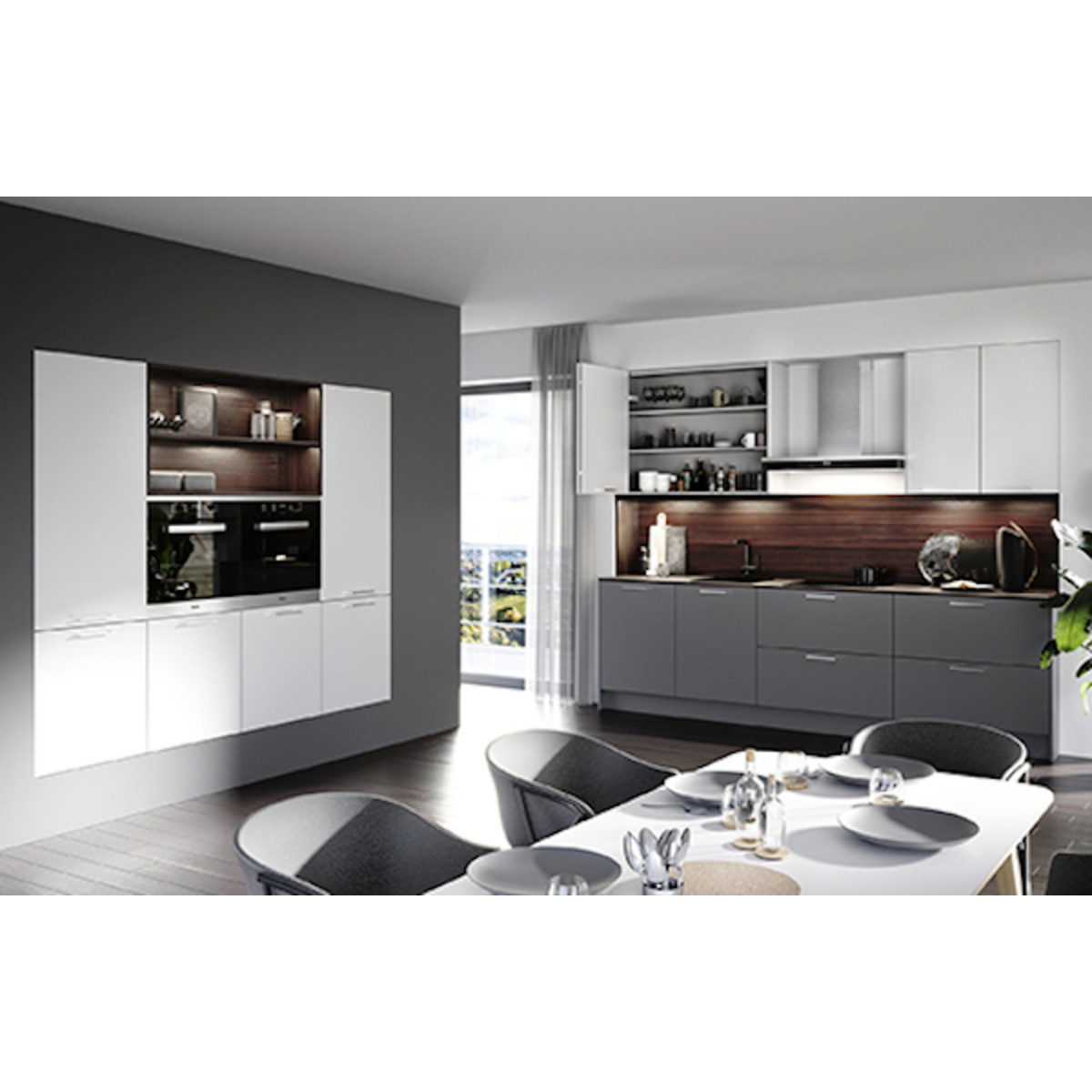

WingLine S
|
WingLine 220
|

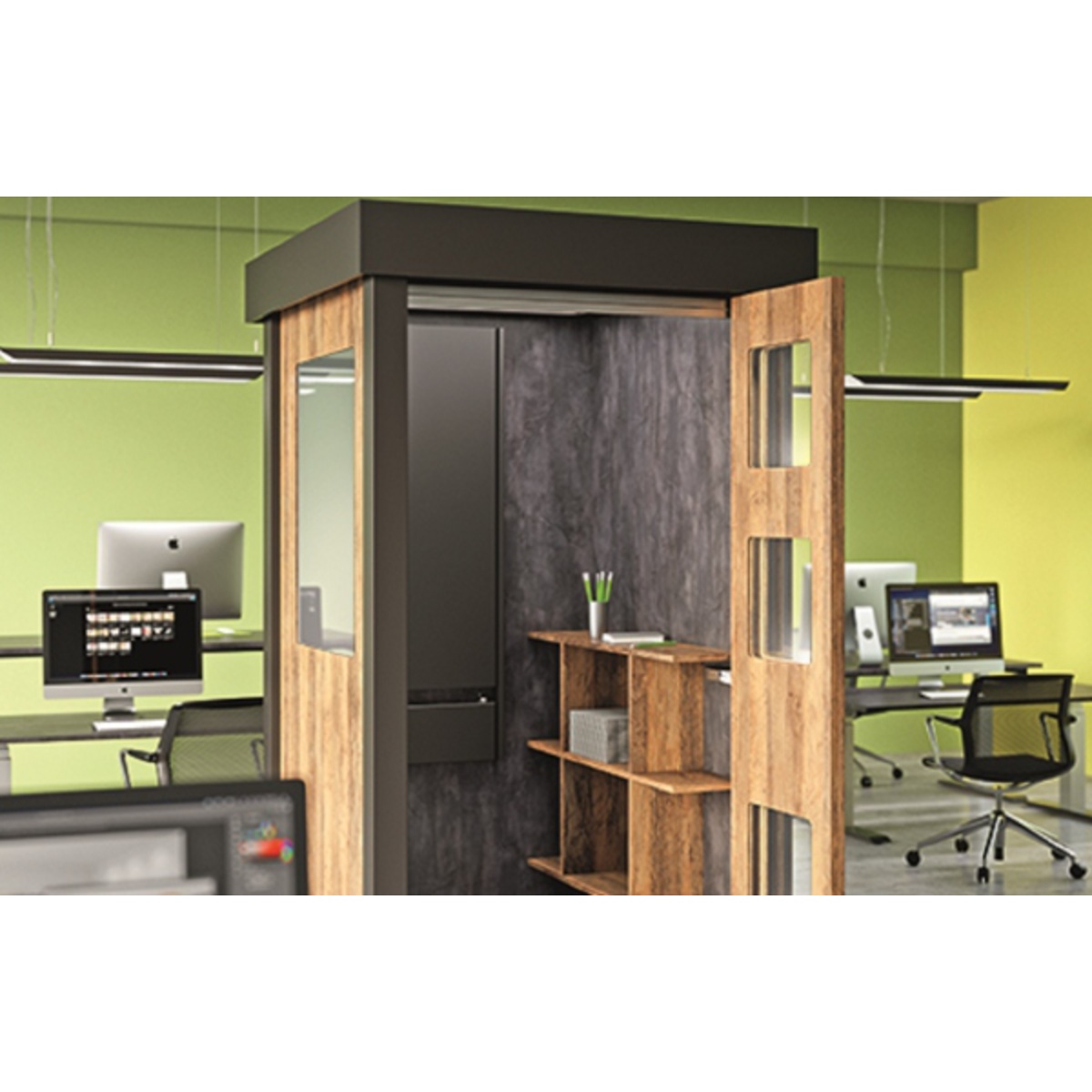

WingLine 230
|
WingLine 77
|
Wing 77
|
|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
Beschrijving |
Zijdelings verbonden vouwdeursysteem met loopprofiel boven en geleidingsprofiel onder | |||||
Aantal deurvleugels |
2 | |||||
deurvleugelgewicht |
Max. 25 kg | |||||
Side mounting |
Ja | Yes | Yes | Yes | Yes | No |
Door material |
Hout | Wood | Wood | Wood | Wood | Wood |
Door wing width |
Max. 600 mm | 450 mm max. | 500 mm max. | 600 mm max. | 500 mm max. | 500 mm max. for 2 door wings, 400 mm max. for 4 door wings |
Door wing height |
Max. 2600 mm | 1000 mm max. | 2400 mm max. | 3000 mm max. | 2400 mm max. | 2400 mm max. |
Comfort unit |
|
|
- |
|
- | - |
Locking system |
|
|
|
|
|
|
Description |
Side mounted folding door system with guide profile at top, without runner profile |
Side mounted folding door system with runner profile at top / guide profile at bottom with invisibly installed fittings / guides | Side mounted folding door system with runner profile at top for large-size doors | Side mounted folding door system with runner profile at top / guide profile at bottom for heavy doors | Folding door system without side mounting, with runner profile at top / guide profile at bottom, for folding doors that move freely in front of the cabinet body | |
Number of door wings |
2 | 2 | 2 | 2 | 2 or 4 | |
Door wing weight |
< 5 kg | 25 kg max. | 20 - 25 kg | 25 kg max. | 25 kg max. for 2 door wings, 20 kg max. for 4 door wings |
