Home
Hinges
Concealed hinges
Novisys fast assembly concealed hinges
Mounting plates

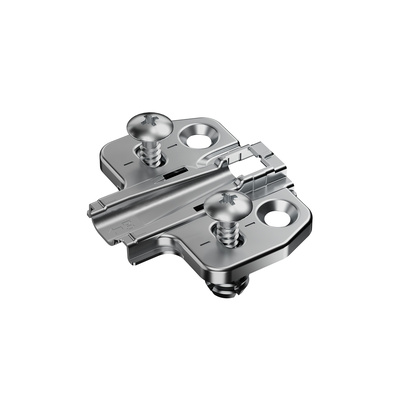

Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 / 50 x 32 mm, with expanding sockets (for drilling ø 10 x 12 mm), distance 0.0 mm

Type of mounting plate

Cross mounting plate (4)

Height adjustment

oblong hole height adjustment (4)

Mounting plate / Hole line distance LR / Hole spacing LA

Cross mounting plate / LR 37 / LA 32 (4)

Finish

nickel plated (4)

Diameter of mounting hole

10 mm ø (4)

Door application

half overlay (4)
inset (4)
overlay (4)

Distance

0.0 mm (1)
1.5 mm (1)
3.0 mm (1)
5.0 mm (1)

Mounting option

with expanding sockets (4)

Type of mounting plate installation (Mounting hole)

with expanding sockets (ø 10 x 12) (4)

Material

steel (4)

With Ø10 mm expanding sockets, oblong hole height adjustment, 2 additional fixing positions

Filter

Distance

- 0 mm 1.5 mm 3 mm 5 mm

Hole line distance LR

- 37 mm

- 200 ea.

Order no.

- 9313871 9313884 9313896 9313908

	Product	Distance	Hole line distance LR	PU	Order no.
300006744	Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 / 50 x 32 mm, with expanding sockets (for drilling ø 10 x 12 mm), distance 0.0 mm	0 mm	37 mm	200 ea.	9313871
300006746	Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 / 50 x 32 mm, with expanding sockets (for drilling ø 10 x 12 mm), distance 1.5 mm	1.5 mm	37 mm	200 ea.	9313884
300006748	Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 / 50 x 32 mm, with expanding sockets (for drilling ø 10 x 12 mm), distance 3.0 mm	3 mm	37 mm	200 ea.	9313896
300006750	Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 / 50 x 32 mm, with expanding sockets (for drilling ø 10 x 12 mm), distance 5.0 mm	5 mm	37 mm	200 ea.	9313908
