Home
Drawer systems
ArciTech drawer system
All-inclusive sets, dismantled
ArciTech pot-and-pan drawer with DesignSide
Pot-and-pan drawer with DesignSide, 186/94 mm
Pot-and-pan drawer set with DesignSide ArciTech, 186/ 94 / 350 mm, anthracite, left and right

Version

All-inclusive sets (6)

Components

All inclusive set without drawer runner (6)

Nominal length mm

350 mm (1)
400 mm (1)
450 mm (1)
500 mm (1)
550 mm (1)
650 mm (1)

Drawer type

double walled (6)

System colour

anthracite (6)

Cabinet side

left and right (6)

Min. installed depth

353 mm (1)
403 mm (1)
453 mm (1)
503 mm (1)
553 mm (1)
653 mm (1)

System height mm

186 (6)

System / drawer side profile height

186/ 94 (6)

Material

steel (6)

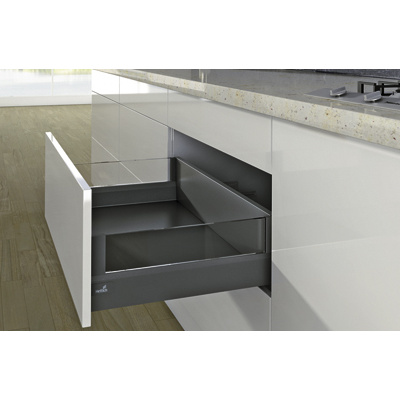

Pot-and-pan drawer with DesignSide, 186/94 mm, anthracite

Filter

System colour

- anthracite

System height

- 186

Nominal length

- 350 mm 400 mm 450 mm 500 mm 550 mm 650 mm

Cabinet body width

- 200 mm - 1200 mm

- 1 ea.

Order no.

- 9150548 9150549 9150550 9150551 9150552 9150553

	Product	System colour	System height	Nominal length	Cabinet body width	PU	Order no.
500024116	Pot-and-pan drawer set with DesignSide ArciTech, 186/ 94 / 350 mm, anthracite, left and right	anthracite	186	350 mm	200 mm - 1200 mm	1 ea.	9150548
500024120	Pot-and-pan drawer set with DesignSide ArciTech, 186/ 94 / 400 mm, anthracite, left and right	anthracite	186	400 mm	200 mm - 1200 mm	1 ea.	9150549
500024124	Pot-and-pan drawer set with DesignSide ArciTech, 186/ 94 / 450 mm, anthracite, left and right	anthracite	186	450 mm	200 mm - 1200 mm	1 ea.	9150550
500024128	Pot-and-pan drawer set with DesignSide ArciTech, 186/ 94 / 500 mm, anthracite, left and right	anthracite	186	500 mm	200 mm - 1200 mm	1 ea.	9150551
500024132	Pot-and-pan drawer set with DesignSide ArciTech, 186/ 94 / 550 mm, anthracite, left and right	anthracite	186	550 mm	200 mm - 1200 mm	1 ea.	9150552
500024136	Pot-and-pan drawer set with DesignSide ArciTech, 186/ 94 / 650 mm, anthracite, left and right	anthracite	186	650 mm	200 mm - 1200 mm	1 ea.	9150553
