Detailed comparison

Cabinet suspension brackets and suspension rails

Systems

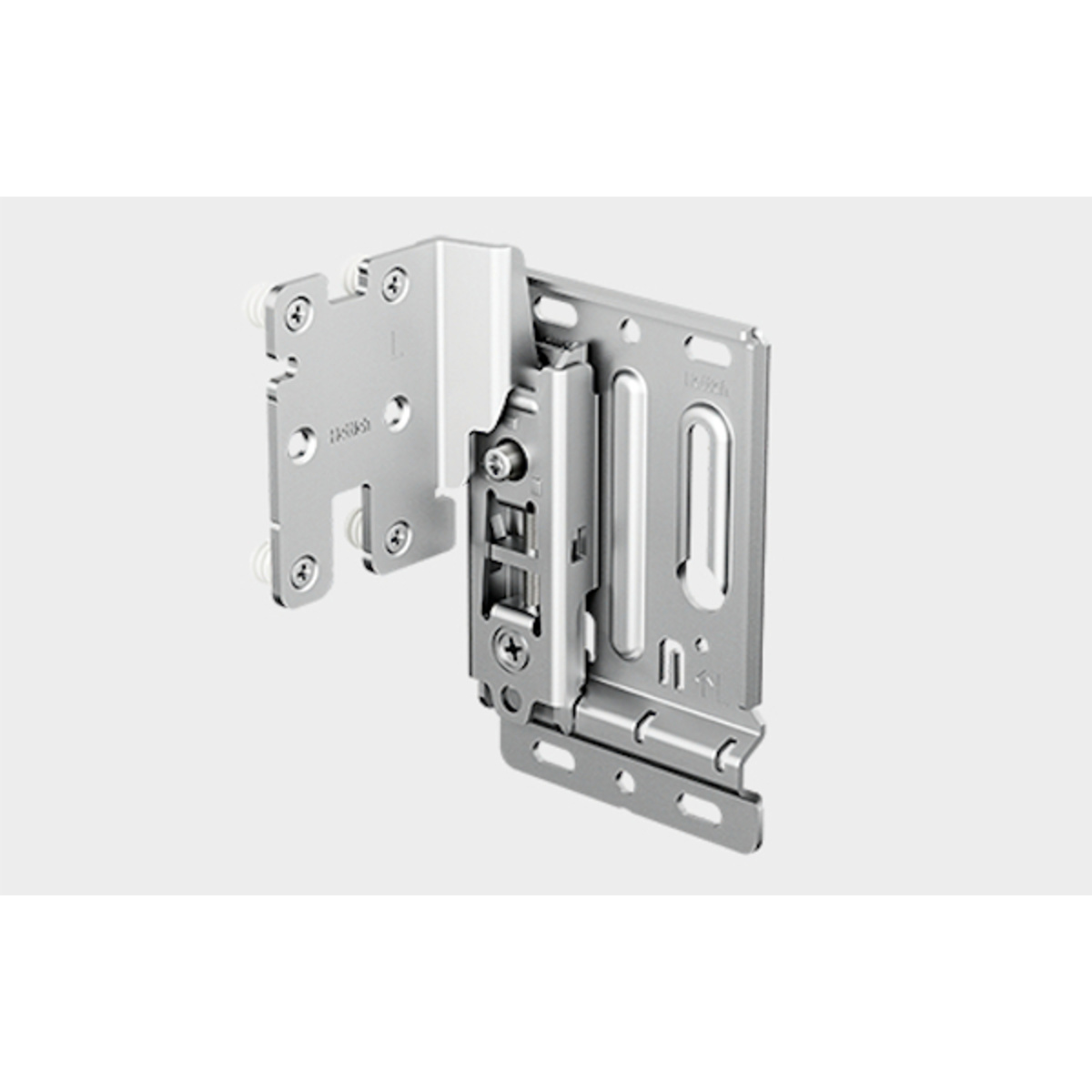

SAH 500
SAH 216
SAH 215

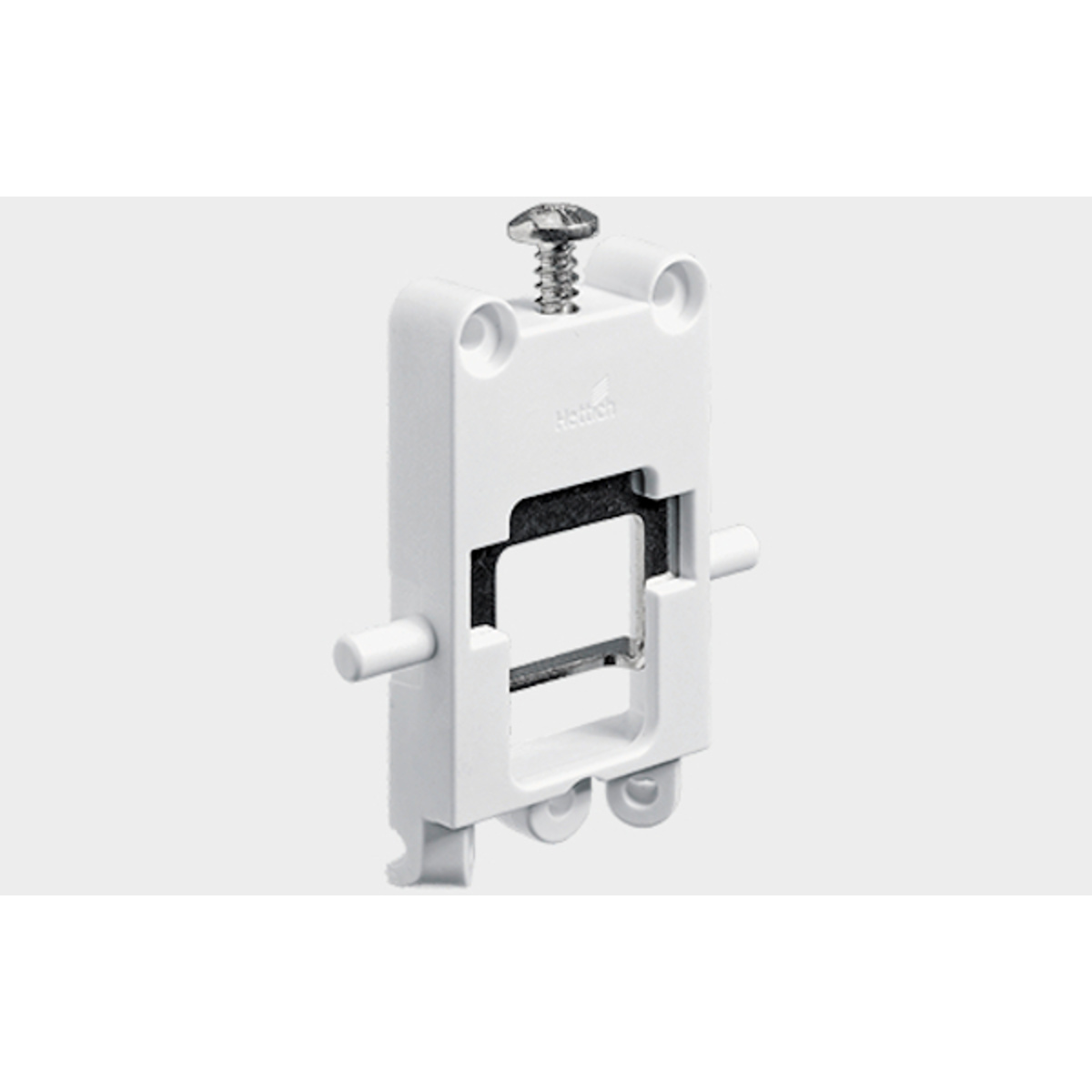

SAH 209
SAH 130
SAH 116
SAH 15

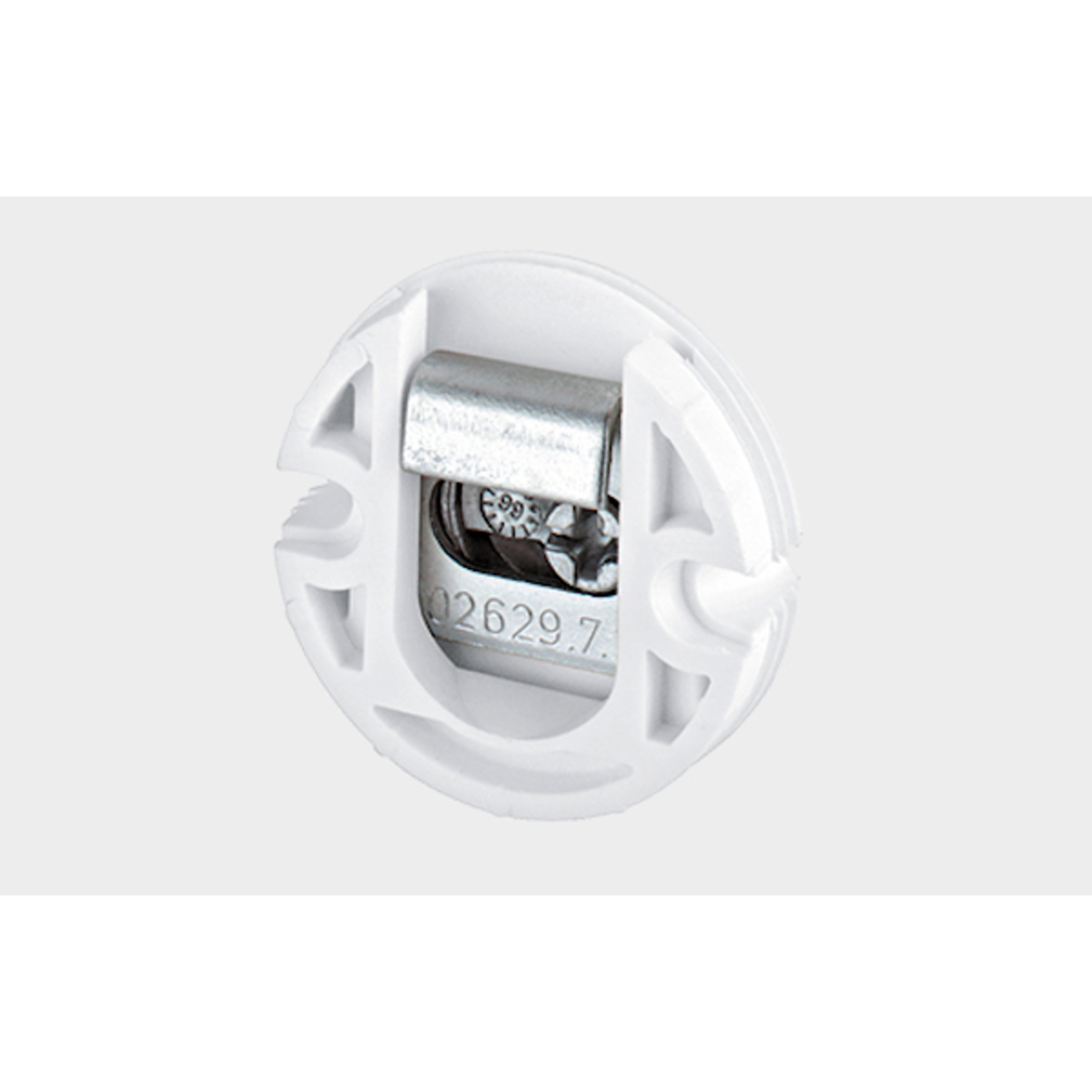

SAH 302
SAH 305
Installation
  • for pressing in
  • In the cabinet body
  • With lift off guard (AHS)
  • For screwing on
  • On the back of the rear panel
  • With / without lift off guard (AHS)
  • For screwing on
  • On the back of the rear panel
  • With / without lift off guard (AHS)
  • For screwing on
  • On the back of the rear panel
  • For pressing in
  • In the cabinet body
  • For screwing on
  • In the cabinet body
  • For screwing on
  • In the cabinet body
  • For pressing in
  • In the rear panel
  • For pressing in
  • In the rear panel
Load capacity
Test frame type A: 110 kg / piece
Test frame type B: 80 kg / piece
Test frame type C: 50 kg / piece
according to EN 15939


Test frame type A: 55 kg / piece
according to EN 15939
Test frame type A: 45 kg / piece
according to EN 15939
Test frame type A: 20 kg / piece
according to EN 15939
Test frame type A: 35 kg / piece
according to EN 15939
Test frame type A: 40 kg / piece
according to EN 15939
Test frame type A: 30 kg / piece
according to EN 15939
Test frame type A: 15 kg / piece
according to EN 15939
Test frame type A: 15 kg / piece
according to EN 15939
Suspension bracket
  • Wall-mounted element SAH 500
  • Suspension hook
  • Suspension rail, type B
  • Suspension rail, type H
  • Suspension rail, type M
  • Suspension hook
  • Suspension rail, type B
  • Suspension rail, type H
  • Suspension rail, type M
  • Suspension hook
  • Suspension hook
  • Suspension rail, type A
  • Suspension rail, type B
  • Suspension rail, type L
  • Suspension hook
  • Suspension rail, type A
  • Suspension rail, type B
  • Suspension rail, type L
  • Suspension hook
  • Suspension rail, type A
  • Suspension rail, type B
  • Suspension rail, type L
  • Suspension hook
  • Suspension hook
Adjustment range
Height
Depth
Page

± 11 mm
+ 10 mm / - 2 mm
± 3 mm



± 8 mm
25 mm max.
± 7.5 mm
(± 3 mm for suspension hooks)

± 8 mm
25 mm max.
± 7.5 mm
(± 3 mm for suspension hooks)

± 5 mm
-
± 7 mm
-

± 7 mm
15 mm max.
± 7 mm
(± 3 mm for suspension hooks)

± 7 mm
15 mm max.
± 7 mm
(± 3 mm for suspension hooks)

- 2 / + 9 mm
- 2 / + 17 mm
± 7 mm
(± 6 mm for suspension hooks)

± 4 mm
-
± 4 mm
-

-
-
± 8 mm
-
Rear panel recess
16 mm min.
(can also be used without back panel)
16 mm min.
(from rear edge of rear panel)
16 mm min.
(from rear edge of rear panel)
11 mm min.
(from rear edge of rear panel)
16 mm min.
(from front edge of rear panel)
16 mm min.
(from front edge of rear panel)
15 mm min.
(from front edge of rear panel)
- -
