Detailed comparison

Quadro drawer runners

Systems

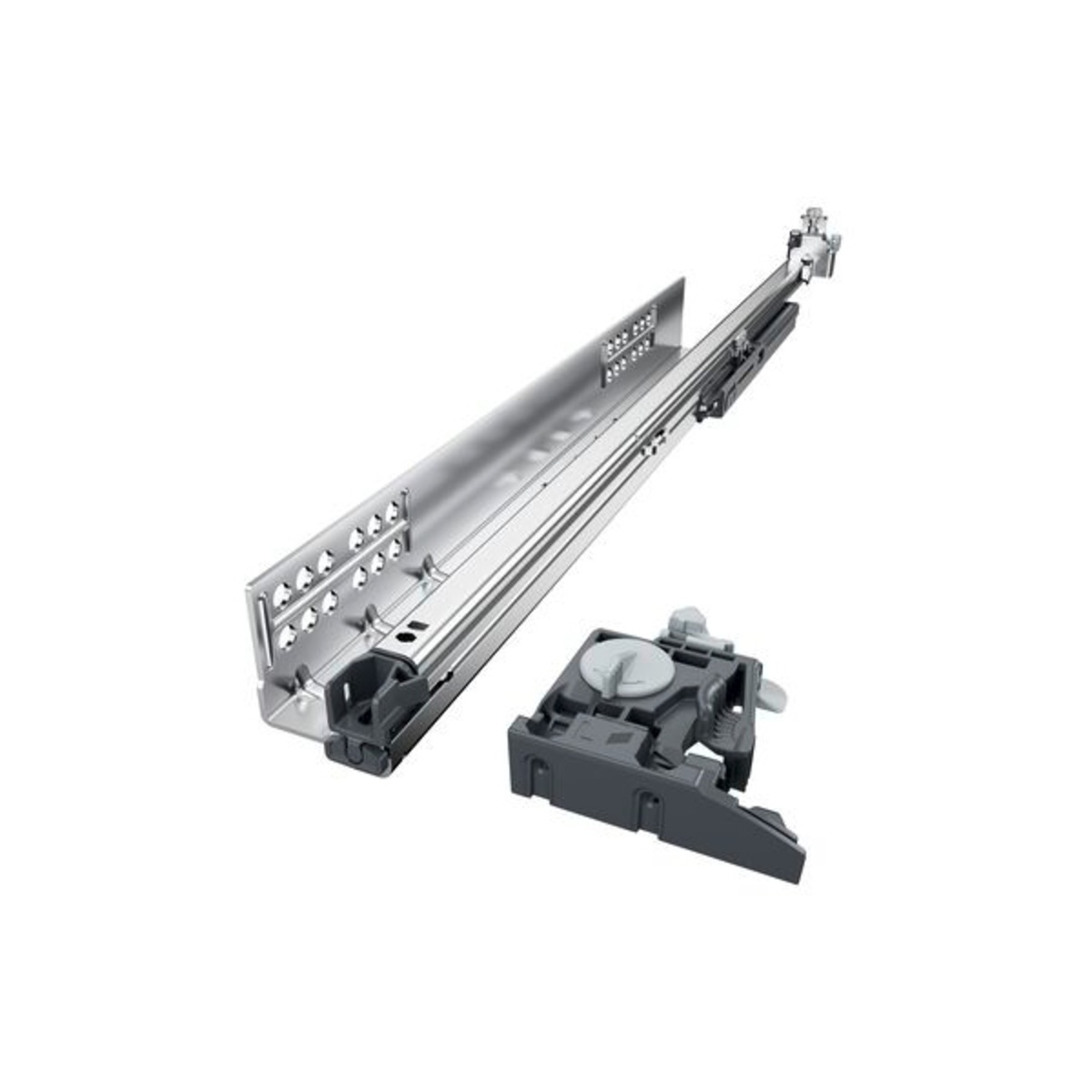

Quadro V6 5D

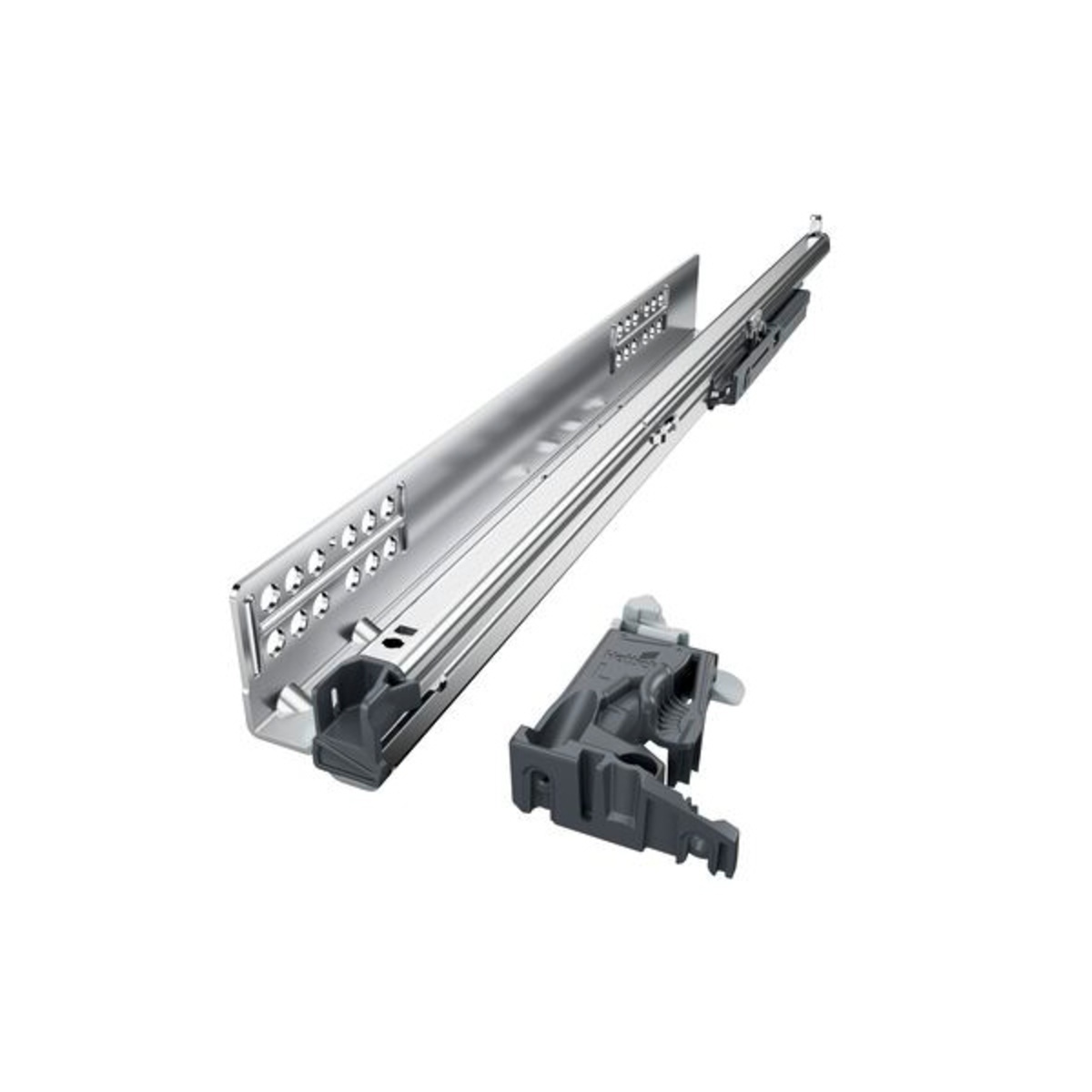

Quadro V6 YOU

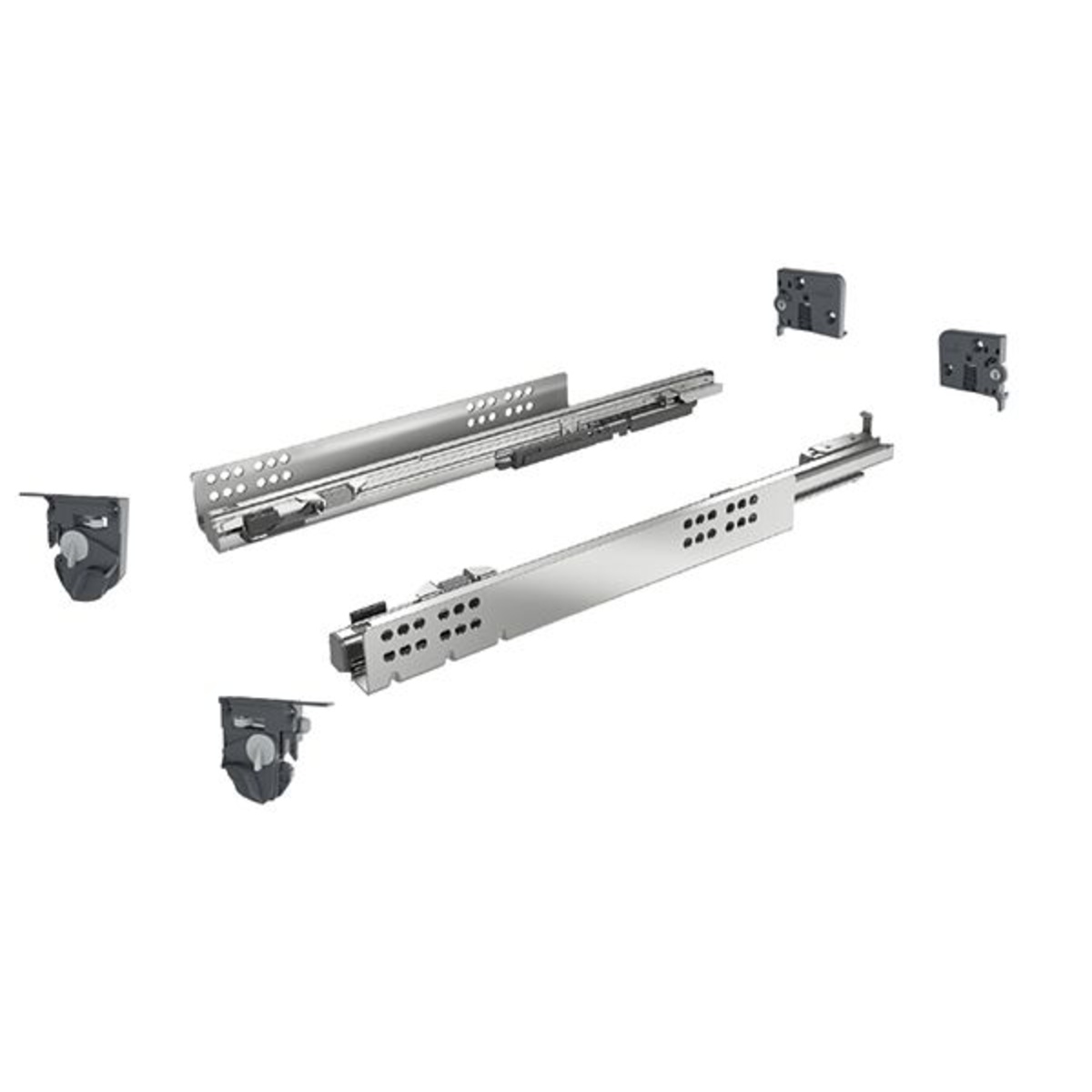

Quadro V6 4D
Quadro V6+

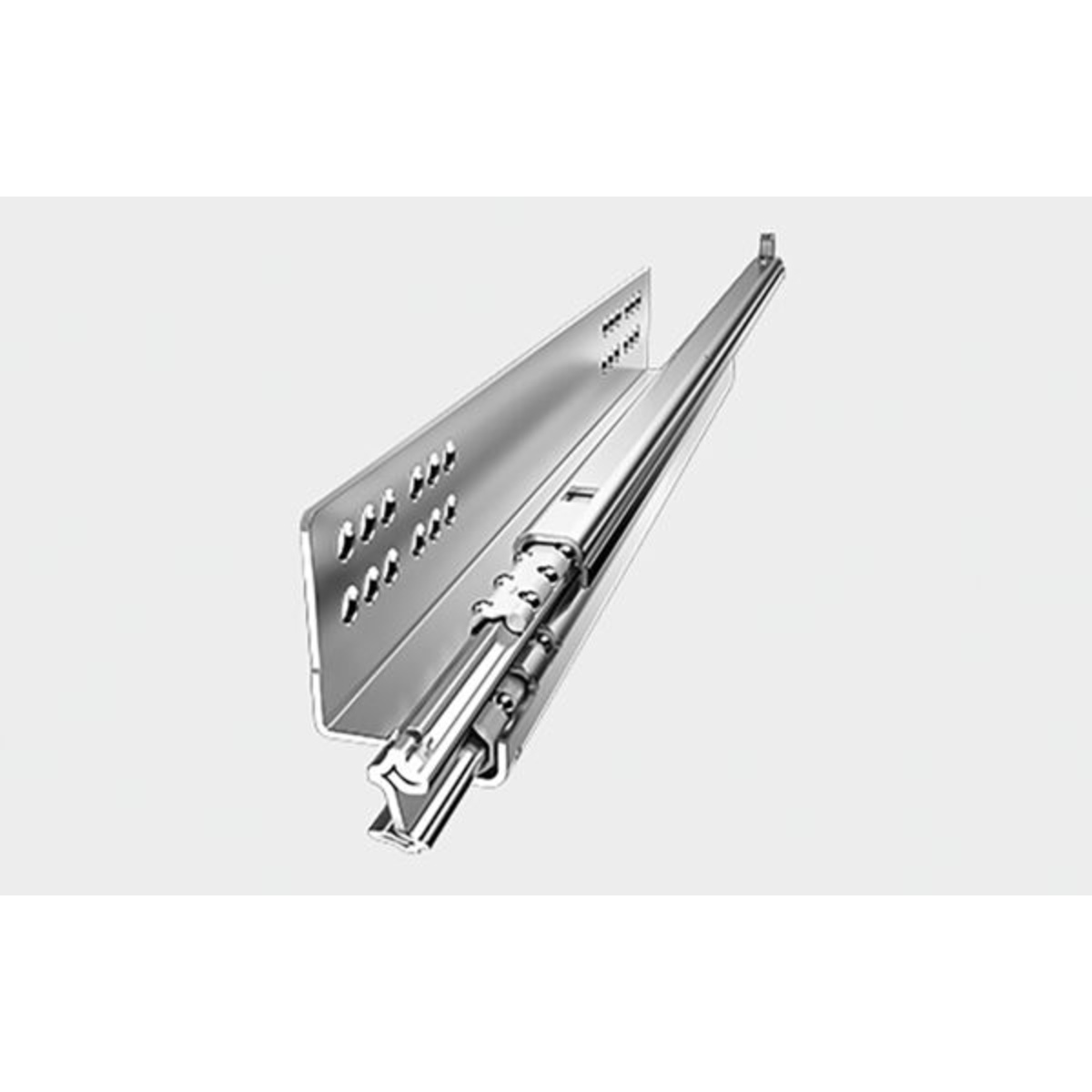

Quadro V6

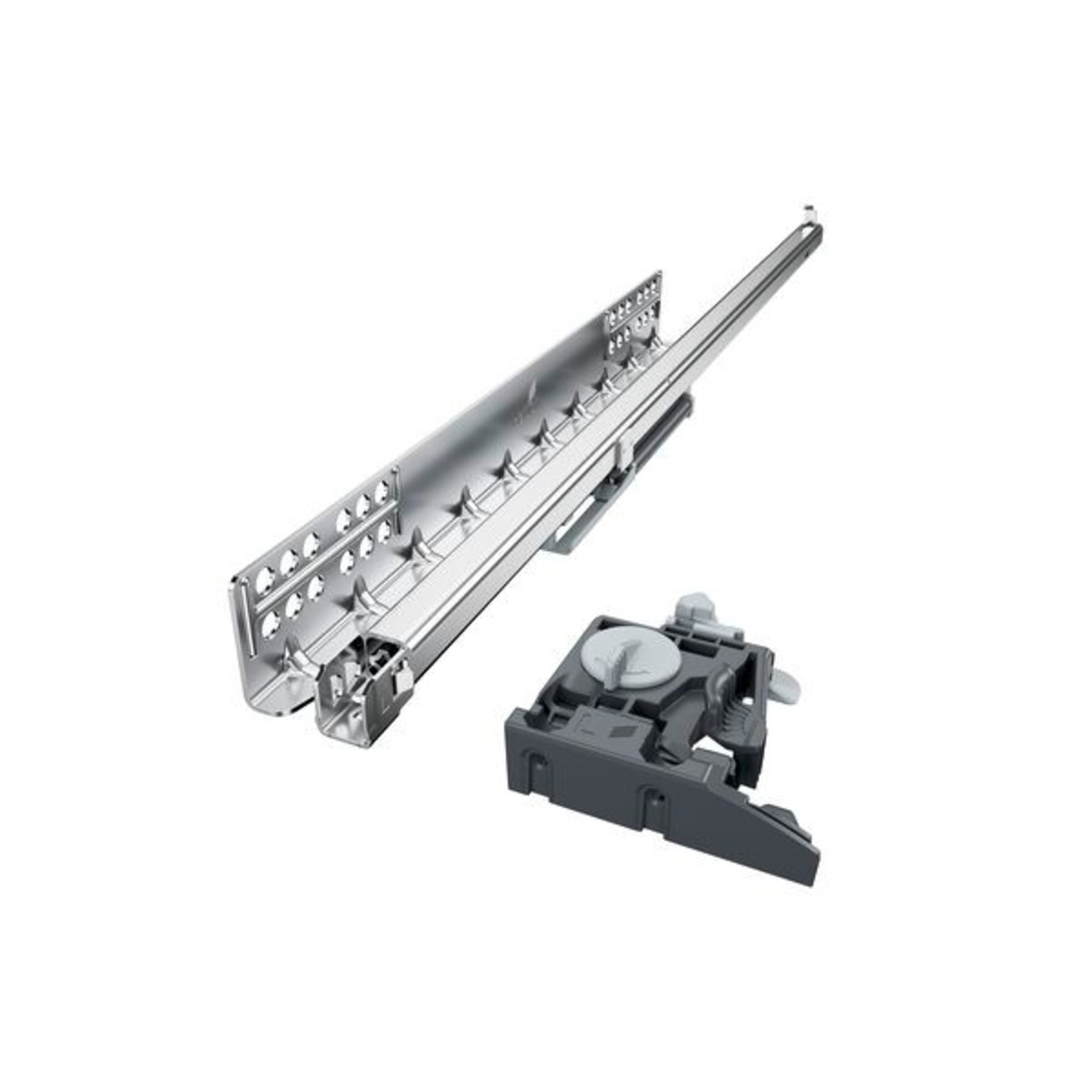

Quadro 25 2D

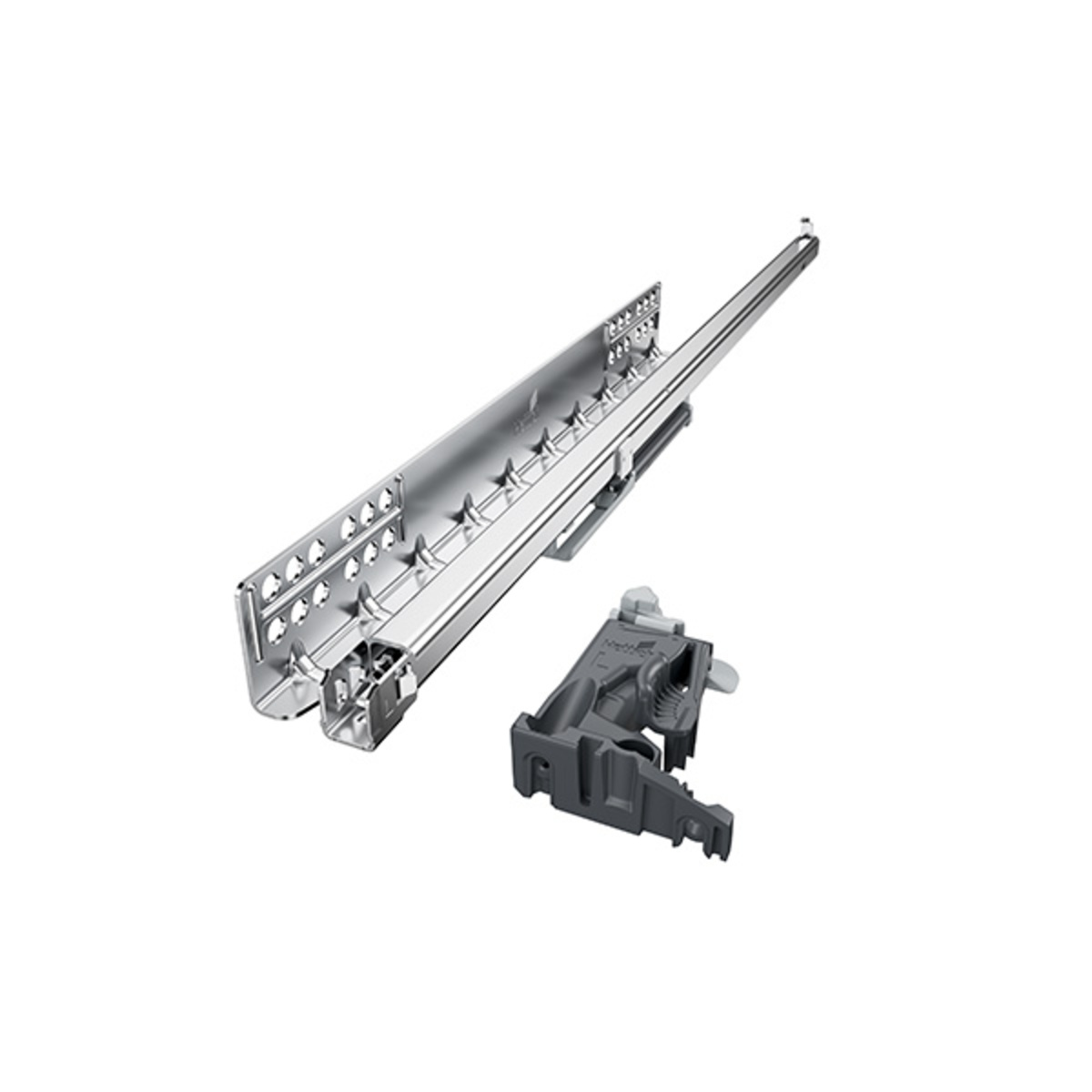

Quadro 25 YOU

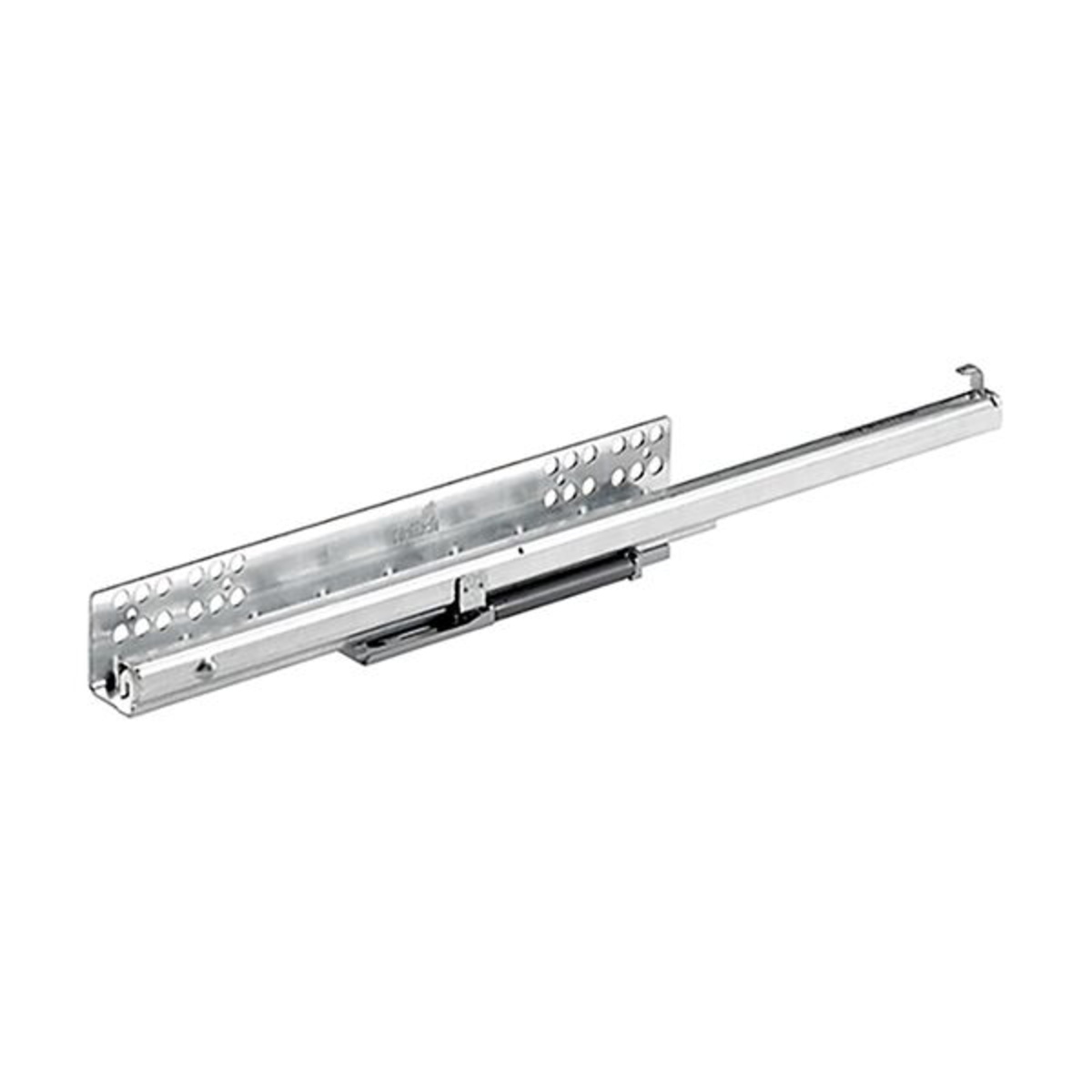

Quadro 25
Description
Perfect reveal alignment thanks to adjustment in 5 dimensions Amazing gateway to a world full of options Perfect reveal alignment for wooden drawers Quadro V6+ The classic – always captivating Visible quality paired with high cost efficiency Quality so cost efficient Quality so cost efficient
Type of runner
Concealed runner Concealed runner Concealed runner Concealed runner Concealed runner Concealed runner Concealed runner Concealed runner
Type of drawer runner
Full extension runner Full extension runner Full extension runner Full extension runner Full extension runner Partial extension runner Partial extension runner Partial extension runner
User friendly features
  • Silent System
  • Push to open
  • compatible with Push to open Silent
  • Silent System
  • Push to open
  • compatible with Push to open Silent
  • Silent System
  • Push to open
  • compatible with Push to open Silent
Silent System
  • Silent System
  • Push to open
  • Silent System
  • Push to open
  • Silent System
  • Push to open
  • Silent System
  • Push to open
  • Stop Control
Installation
Slide-on assembly Slide-on assembly Slide-on assembly Slide-on assembly Push and slide on installation Slide-on assembly Slide-on assembly Push and slide on installation
Adjustment
  • Height
  • Page
  • Tilt
  • Depth
  • Radial
  • Height
  • Height
  • Page
  • Tilt
  • Depth
  • Height
  • Height
  • Height
  • Page
  • Height
  • Height
Load class
XS: up to 10 kg
M: up to 30 kg
XS: up to 10 kg
M: up to 30 kg
M: up to 30 kg L: up to 50 kg M: up to 30 kg S: up to 25 kg S: up to 25 kg S: up to 25 kg
Drawer lengths
Drawer length = nominal length - 10 mm
240 - 590 mm
Drawer length = nominal length - 10 mm
240 - 590 mm
Drawer length = nominal length
250 - 600 mm
Drawer length = nominal length
15 - 24"
Drawer length = nominal length
250 - 600 mm
Drawer length = nominal length - 10 mm
260 - 540 mm
Drawer length = nominal length - 10 mm
260 - 540 mm
Drawer length = nominal length
250 - 550 mm
Minimum cabinet depth
Nominal length + 3 mm Nominal length + 3 mm Nominal length + 13 mm Nominal length + 13 mm Nominal length + 13 mm Nominal length + 3 mm Nominal length + 3 mm Nominal length + 13 mm
Installed width (side profile thickness)
Drawer side profile thickness ≤ 16 mm Drawer side profile thickness ≤ 16 mm Drawer side profile thickness ≤ 16 mm Drawer side profile thickness ≤ 5/8"
  • Drawer side profile thickness ≤ 16 mm
    or
  • Drawer side profile thickness ≤ 19 mm
Drawer side profile thickness ≤ 16 mm Drawer side profile thickness ≤ 16 mm
  • Drawer side profile thickness ≤ 16 mm
    or
  • Drawer side profile thickness ≤ 19 mm
Internal drawer width
Cabinet body internal width - 42 mm Cabinet body internal width - 42 mm Cabinet body internal width - 40 mm Cabinet body internal width - 42 mm
  • Cabinet body internal width - 40 mm (for drawer side profile thickness ≤ 16 mm);
    or
  • Cabinet body internal width - 46 mm (for drawer side profile thickness ≤ 19 mm)
Cabinet body internal width - 42 mm Cabinet body internal width - 42 mm
  • Cabinet body internal width - 40 mm (for drawer side profile thickness ≤ 16 mm);
    or
  • Cabinet body internal width - 46 mm (for drawer side profile thickness ≤ 19 mm)
Accessories
  • 2D catches
  • Push to open Silent
  • Synchronisation
  • Multi synchronisation
  • Pull-out shelf support
  • Pull-out shelf locating catch
  • YOU catch
  • Push to open Silent
  • Synchronisation
  • Multi synchronisation
  • Pull-out shelf support
  • Pull-out shelf locating catch
  • 4D catches
  • Tilt adjuster
  • Push to open Silent
  • Synchronisation
  • Multi synchronisation
  • 1D catches
  • Synchronisation
  • Multi synchronisation
  • Pull-out shelf support
  • Pull-out shelf locating catch
  • 2D catches
  • Synchronisation
  • Multi synchronisation
  • Pull-out shelf support
  • Pull-out shelf locating catch
  • YOU catch
  • Synchronisation
  • Multi synchronisation
  • Pull-out shelf support
  • 1D catches
  • Synchronisation
  • Pull-out shelf support
