Detailed comparison

Corner unit fittings

Mostrar sólo las diferencias

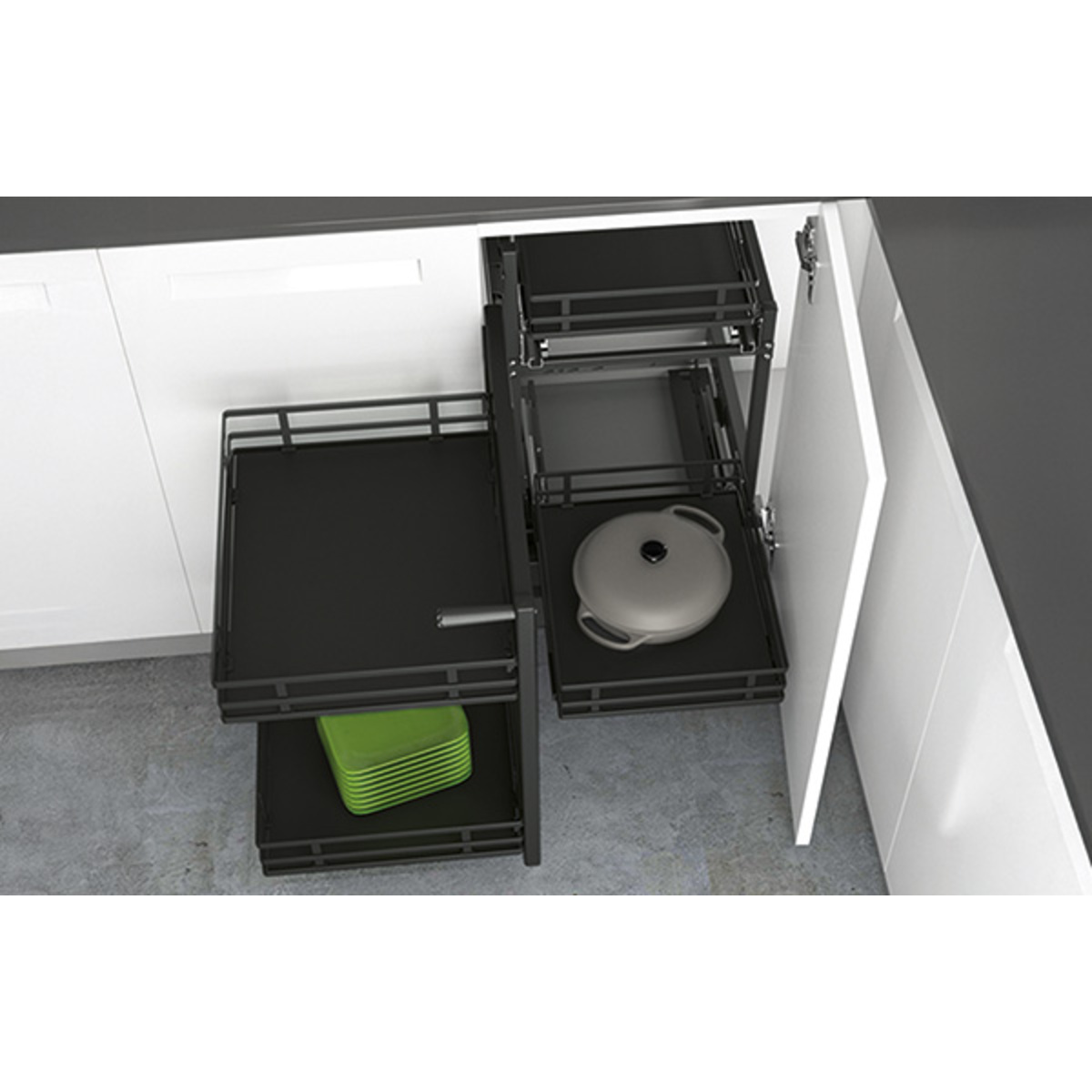

Systems	Salso	LeMans II	Orta	Goro		Moving Corner	Half carousel revolving fitting	Revo 90°	Three-quarter circle revolving shelf

Description	Corner unit swivel pull-out for installing behind hinged door	Corner unit swivel pull-out for installing behind hinged door	Corner unit pull-out for installing behind hinged door	Corner unit fitting with pull-out	Corner unit fitting with pull-out	Corner unit pull-out
Features	With integrated soft-opening and soft-closing as standard	With ClickFixx fast installation system Silent System can be fitted as an optional upgrade	Pull-out with integrated Silent System	Pull-out with integrated Silent System	Pull-out with integrated Silent System	With ClickFixx fast installation system Pull-out with integrated Silent System
Load capacity	18 kg per shelf	25 kg per shelf	7 kg per shelf / basket, front 11 kg per shelf / basket, rear	7 kg per shelf / basket, front 9 kg per shelf / basket, rear	7 kg per shelf / basket, front 9 kg per shelf / basket, rear	7 kg per shelf / basket, front 9 kg per shelf / basket, rear
For corner cabinet widths	For corner units with 450 to 600 mm front width	For corner units with 450, 500 or 600 mm front width	For corner units with 400 to 600 mm front width	For corner units with 450 front width	For corner units with 450 mm front width	For corner units with 450 to 600 mm front width
For inside cabinet body height	620 - 820 mm	600 - 750 mm, 720 - 900 mm or 1265 mm min.	575 mm min.	615 mm min.	615 mm min.	525 mm min.
Fitting / centre column colour	Silver Anthracite	White Anthracite	Silver Anthracite	Silver Anthracite	silver anthracite	Silver Anthracite
Hook in / revolving shelves	Design line 400, chrome plated, anthracite Design line 300, chrome plated Design line 200, anthracite	Arena STYLE, chrome plated, anthracite Arena CLASSIC, chrome plated, silver	Design line 400, chrome plated, anthracite Design line 200, anthracite	Design line 400, chrome plated, anthracite Design line 200, anthracite	Designline 400 chrome plated, anthracite Designline 200, anthracite	Arena STYLE, chrome plated, anthracite Arena CLASSIC, chrome plated
Hook in / carousel baskets	-	-	Steel, chrome plated	Steel, chrome plated	Steel, chrome plated	Steel, chrome plated
Special features	-	Shelves individually swing out all the way, leaving them in front of the cabinet body	The centre upright is for use on left and right Shelves / baskets at the back can be pulled out individually	The rear shelves / baskets are moved to the cabinet opening on pulling out the pot-and-pan drawer	The rear shelves / baskets are moved to the cabinet opening on pulling out the pot-and-pan drawer	The rear shelves / baskets are moved to the cabinet opening on pulling out the pot-and-pan drawer
Descripción							Corner unit carousel fitting for installation behind hinged door	Herraje giratorio de armario de esquina para frentes móviles	Herraje giratorio de armario de esquina para montaje detrás de la puerta batiente
Equipamiento							Complete fitting, including pivot arm and carousel shelves	Con sistema de montaje rápido ClickFixx Con amortiguación Silent System integrada	Herraje completo incl. eje y baldas giratorias
Capacidad de carga							15 kg per shelf / basket	25 kg por balda / cesto	15 kg por balda / cesto
Para anchos de armario de esquina							For corner units with 900 or 1000 mm cabinet body dimension	Para una medida de esquina de 800 x 800 mm y 900 x 900 mm	Para una medida de esquina de 800 x 800 mm y 900 x 900 mm
Para altura libre del módulo							730 mm Pivot arm can be cut to length individually	660 - 860 mm	Ajustable de 839 a 889 mm o acortable a medida
Color de herraje / eje							Steel, chrome plated	Eje de acero cromado Herraje de acero con acabado epoxi plata, antracita	Acero cromado
Bandejas giratorias / tableros para colgar							STYLE chrome plated CLASSIC, chrome plated	STYLE cromo, antracita CLASSIC cromo, plata	STYLE cromado CLASSIC cromado
Cestos para colgar / giratorios							-	-	-
Particularidades							La balda giratoria inferior está directamente unida a la puerta	Ajuste sin herramientas de la velocidad de cierre Baldas regulables en altura de forma progresiva	El carrusel se detiene en la posición inicial
