Spare parts BlueMax Mini (machine model: Type 3, Modular, Modular Plus)
Here you will find spare parts for our BlueMax machines. If you cannot find the spare part number you are looking for, contact your Hettich contact person, please.
| Article | PU | Order no. | Price | ||
|---|---|---|---|---|---|
| 960000368 | SP 1122 Suction BlueMax Mini type 3 | 1 ea. | 73949 |
|
|
|
960000752 | SP pinion teeth=32 SP.1106 | 1 ea. | 480755 |
|
| 960000752 | SP 1164 Square Nut M8 | 1 ea. | 76500 |
|
|

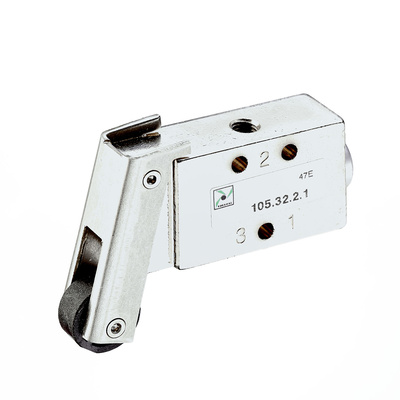

| 970008240 | SP 1260 3/2-way valve with sensing roller | 1 ea. | 13083 |
|
|
| 970008252 | SP 1553 Feather key for clutch | 1 ea. | 78878 |
|
|

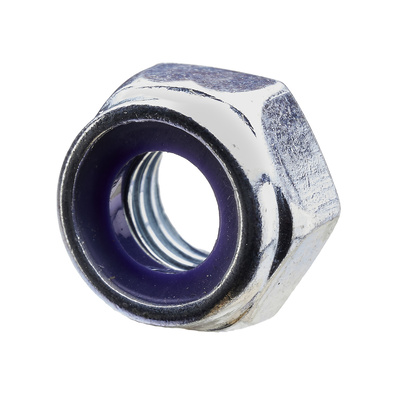

| 970008256 | SP 1249 Self locking hexagon nut | 1 ea. | 77494 |
|
|

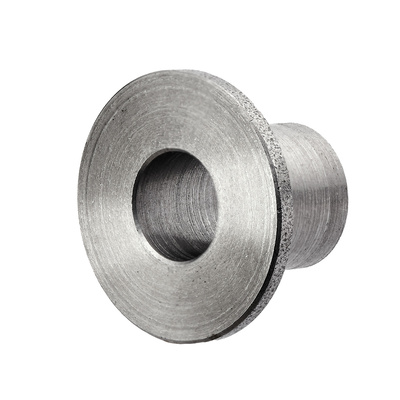

| 970008260 | SP 1250 Socket | 1 ea. | 77495 |
|
|
| 970008264 | ET 1570 Bowex coupling 1,3 kW motor (drilling unit ø10 mm / motor ø19 mm) | 1 ea. | 77741 |
|
|
| 970008268 | SP 1185 Seal BlueMax Mini Type 3 with 6 spindles | 1 ea. | 77743 |
|
|

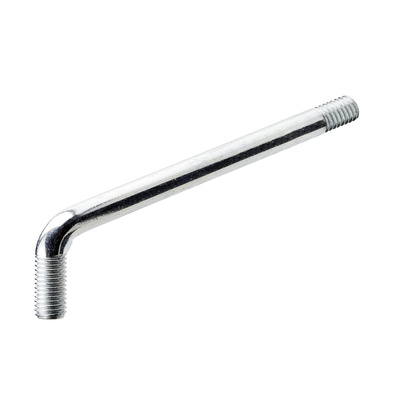

| 970008272 | SP 1223 Handle for press-in frame | 1 ea. | 77831 |
|
|

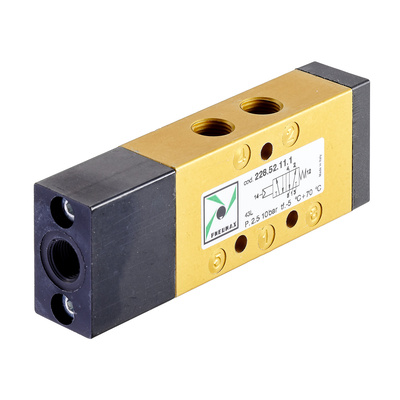

| 970008276 | SP 1953 5/2-Port valve 1/8" | 1 ea. | 78000 |
|
|

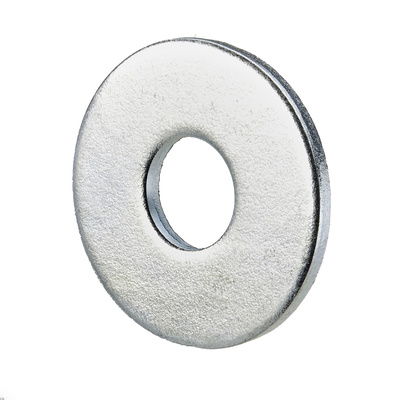

| 970008280 | SP 1248 Washer | 1 ea. | 77493 |
|
|
| 970008284 | SP 1656 5/2 way pushbutton valve 1/8" | 1 ea. | 78874 |
|
|

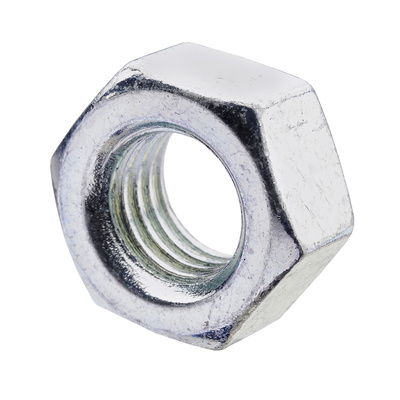

| 970008292 | SP 1787 Hexagon Nut M12 | 1 ea. | 78003 |
|
|

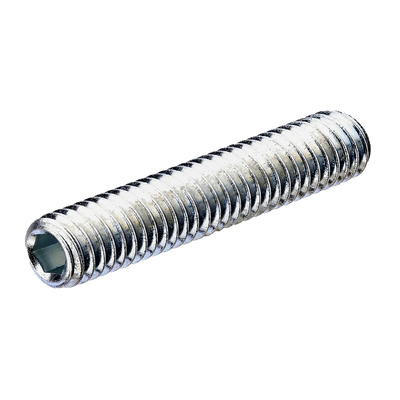

| 970008296 | SP 1247 Threaded pin M8x40 | 1 ea. | 77492 |
|
|
| 970008300 | SP 1182 Special secondary spindle | 1 ea. | 77489 |
|
|
| 970008304 | SP 1108 Base plate | 1 ea. | 78886 |
|
|

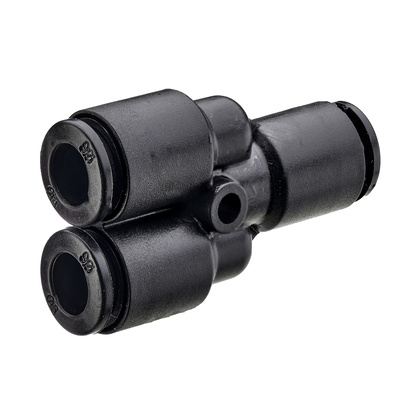

| 970008312 | SP 1760 Y-connector OSY-6 | 1 ea. | 76513 |
|
|
| 970008320 | SP 1739 Fixsquare | 1 ea. | 71325 |
|
|
| 970008324 | SP 1954 Orvalve M5 | 1 ea. | 70614 |
|
|
| 970008328 | SP 1779 3/2-Portvalve M5 | 1 ea. | 70613 |
|
|
| 970008336 | SP 1252 Disk spring DIN 2093, B 22,5 | 1 ea. | 76506 |
|
|

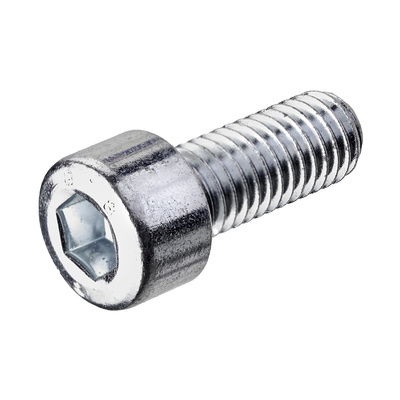

| 970008340 | SP 1168 Hexagon socket head screw M8 x 20 | 1 ea. | 76502 |
|
|
| 970008352 | SP 1114 Fence 800 mm | 1 ea. | 73007 |
|
|
| 970008356 | SP 1104 Main spindle with clamping chuck | 1 ea. | 76205 |
|
|
| 970008360 | SP 1113 Work top Blue Max Mini type 3 (800 x 400 mm) | 1 ea. | 76493 |
|
|
| 970008364 | SP 1165a Threaded pin M6x5 | 1 ea. | 76501 |
|
|

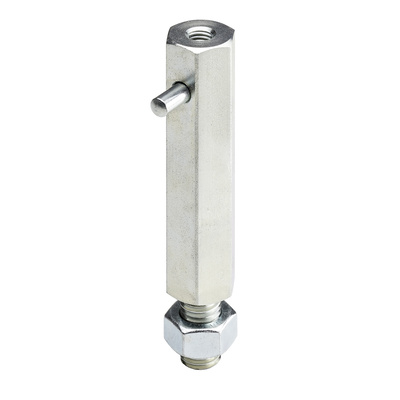

| 970008368 | SP 1741 Bolt for down-hold clamp | 1 ea. | 78002 |
|
|
|
|
970008380 | Connecting element | 1 ea. | 75073 |
|
|
|
970008384 | clamping block | 1 ea. | 75074 |
|
|
|
970008388 | SCREW DIN 912/8.8, M8x10 mm VZ | 1 ea. | 75075 |
|
| 970008392 | SP 1659 Elbow screw connection 1/4" | 1 ea. | 76509 |
|
|
| 970008396 | SP 1118 Flat head screw with slot | 1 ea. | 77488 |
|
|
| 970008400 | SP 1151 Deep groove ball bearing | 1 ea. | 77745 |
|
|
| 970008408 | SP 1665 Servicing unit 1/4' | 1 ea. | 74983 |
|
|
| 970008412 | SP 1112 Guide plate | 1 ea. | 76492 |
|
|
| 970008416 | SP 1119 Angle for fence | 1 ea. | 76496 |
|
|
| 970008432 | SP 1115 Foot profile 465 mm | 1 ea. | 76494 |
|
|
| 970008436 | SP 1117 Safety shield | 1 ea. | 76495 |
|
|
| 970008440 | SP 1173 Threaded pin M4x8 | 1 ea. | 76503 |
|
|
| 970008444 | ET 1552 Bowex coupling for 0,8kW / 1,1kW motor(drilling gear ø10 mm / motor ø14 mm)for BlueMax Mini type 3, BlueMax Mini 2/6 with 6 spindles TH | 1 ea. | 76508 |
|
|
| 970008448 | SP 1660a Elbow screw connection 1/8" | 1 ea. | 76510 |
|
|

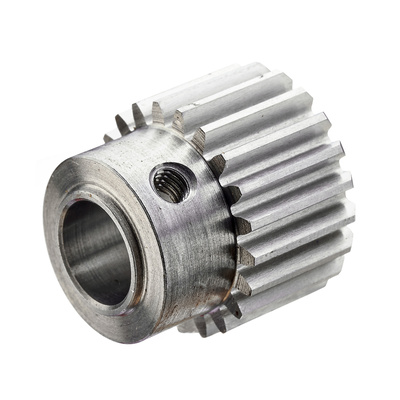

| 970008452 | SP 1105 Pinion Z=21 | 1 ea. | 77487 |
|
|
| 991018912 | SP 1165 Threaded pin M5X4 | 1 ea. | 47347 |
|
|
| 991019074 | SP 1116 Guide screw M6x12 | 1 ea. | 73006 |
|
|
| 991019113 | SP 1163 Hexagon socket head screw M8 x 10 | 1 ea. | 76499 |
|
|

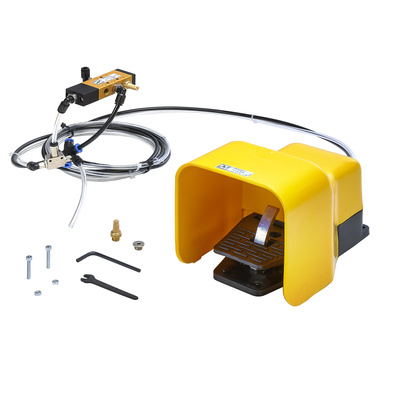

| 991019137 | SP 1955 foot operated switch with 3/2 way valve, 1/8" | 1 ea. | 10925 |
|
|
| 991019139 | SP 1106 Pinion Z=32 | 1 ea. | 76490 |
|
|

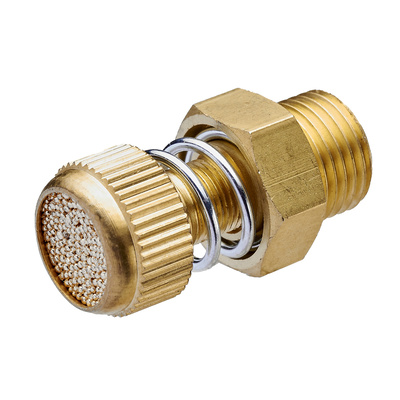

| 991019141 | SP 1663 Exhaust air throttle check valve | 1 ea. | 76511 |
|
|

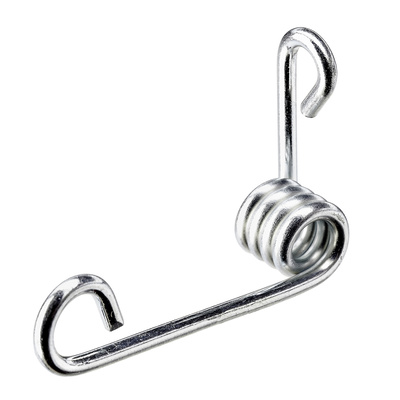

| 991019149 | SP 1632 Retaining spring for blow-off nozzle | 1 ea. | 77881 |
|
|

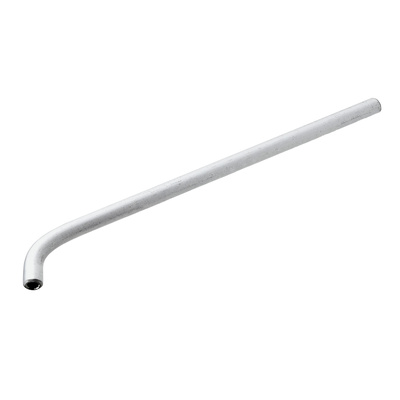

| 991019151 | SP 1633 Blow-off nozzle | 1 ea. | 77882 |
|
|
| 991019155 | SP 1152 Bush | 1 ea. | 78876 |
|
|

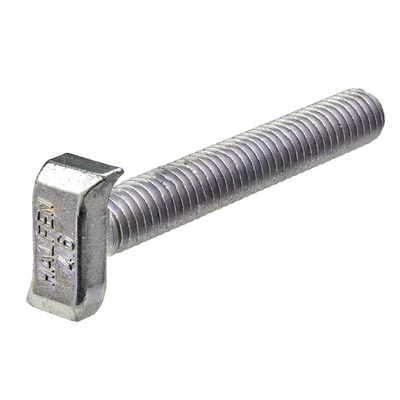

| 991019157 | SP 1127 T-nut screw | 1 ea. | 79137 |
|
|

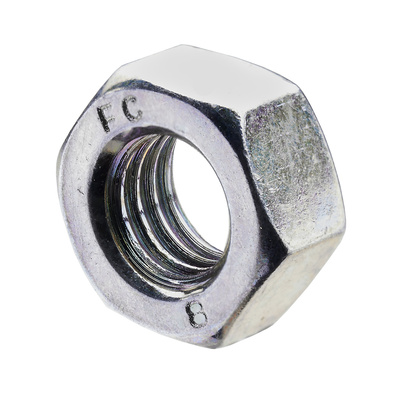

| 991019159 | SP 1128 Hexagon nut M8 | 1 ea. | 79138 |
|
|

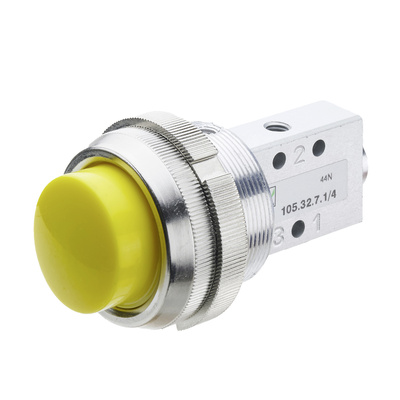

| 99999999 | SP 1778 3/2 Way valve M5 | 1 ea. | 9361794 |
|
|
| 99999999 | SP 2027 Bowex clutch size 19/D=10 mm | 1 ea. | 9361821 |
|
|

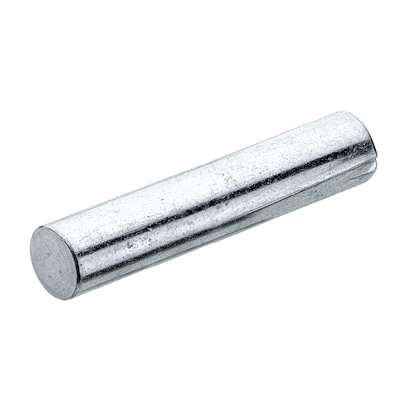

| 99999999 | SP 1786 Fitting notch pin | 1 ea. | 9361822 |
|
