Sensys thick door hinge with integrated Silent System

  • Concealed hinge with clip on installation and integrated Silent System
  • Quality classification under EN 15570, Level 2
  • For door thickness of 15 – 32 mm
  • Cup diameter 35 mm
  • Cup depth 12.8 mm
  • Integrated + 2 mm / - 2 mm overlay adjustment
  • Integrated depth adjustment + 3 mm / - 2 mm
  • Height adjustment at mounting plate
  • All visible parts in obsidian black
  • Hinge arm material: steel in obsidian black
  • Hinge cup material: steel in obsidian black
Door mounting option Type of installation Drilling pattern PU Order no.
300000430 overlay for screwing on TH 52 x 5,5 mm 50 ea. 9091753
300000432 overlay for screwing on TH 52 x 5,5 mm 200 ea. 9090967

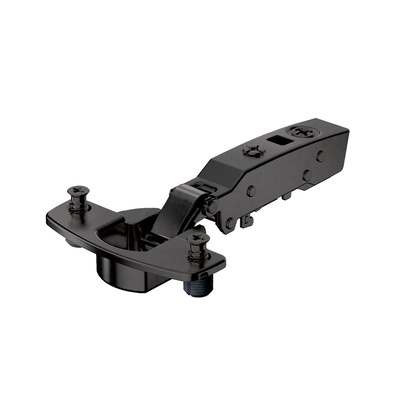

300000438 overlay with expanding sockets TH 52 x 5,5 mm 50 ea. 9091754
300000442 half overlay for screwing on TH 52 x 5,5 mm 50 ea. 9091755

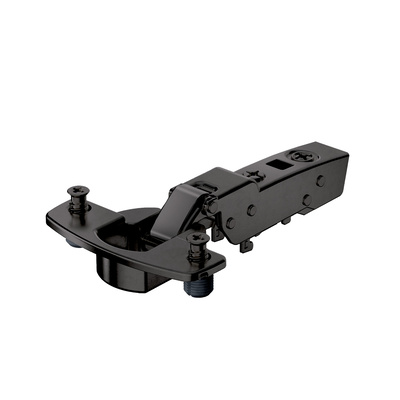

300000450 half overlay with expanding sockets TH 52 x 5,5 mm 50 ea. 9091785

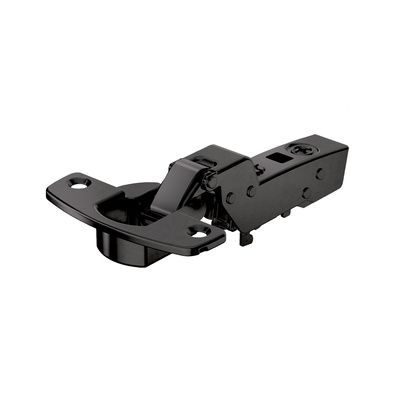

300000454 inset for screwing on TH 52 x 5,5 mm 50 ea. 9091756

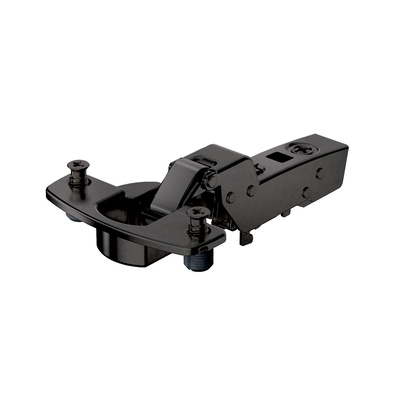

300000462 inset with expanding sockets TH 52 x 5,5 mm 50 ea. 9091757
