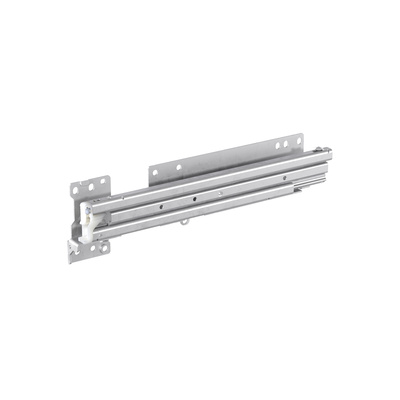

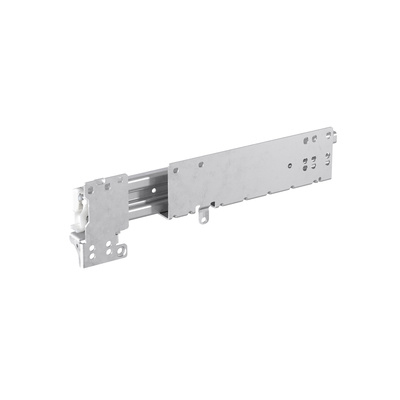

Prowadnice z ponad pełnym wysuwem Quadro Duplex 60 Kg

Rodzaj konstrukcji

- do konstrukcji korpusowej, wymiar X = 13 mm for cabinet body construction, dimension X = 13 mm for wall-to-wall construction, dimension X = 22 mm

Min. installed depth in behind front panels

- 372 412

Min. installed depth in behind doors

- 392 432

Montaż (strona)

- lewy right left and right

J. op.

- 12 szt. 1 szt.

Art. nr

- 1056986 1056987 9078681 9078694 9078724 9078721

	Product	Rodzaj konstrukcji	Min. installed depth in behind front panels	Min. installed depth in behind doors	Montaż (strona)	J. op.	Art. nr
600002036	Prowadnica Quadro Duplex 60, Kompatybilny z i Silent System, możliwość wyposażenia w Push to open, wymiar X = 13 mm, lewy	do konstrukcji korpusowej, wymiar X = 13 mm	372	392	lewy	12 szt.	1056986
600002040	Quadro Duplex 60 drawer runner (pair), Compatibel with Silent System, Compatible with Push to open, dimension X = 13 mm, right	for cabinet body construction, dimension X = 13 mm	372	392	right	12 ea.	1056987
600002048	Quadro Duplex 60 drawer runner (pair), Compatibel with Silent System, Compatible with Push to open, dimension X = 13 mm, left and right	for cabinet body construction, dimension X = 13 mm	372	392	left and right	1 ea.	9078681
600002056	Quadro Duplex 60 drawer runner (pair), Compatibel with Silent System, Compatible with Push to open, dimension X = 22 mm, left and right	for wall-to-wall construction, dimension X = 22 mm	372	392	left and right	1 ea.	9078694
600002072	Quadro Duplex 60 drawer runner (pair), Compatibel with Silent System, Compatible with Push to open, dimension X = 13 mm, left and right	for cabinet body construction, dimension X = 13 mm	412	432	left and right	1 ea.	9078724
600002076	Quadro Duplex 60 drawer runner (pair), Compatibel with Silent System, Compatible with Push to open, dimension X = 22 mm, left and right	for wall-to-wall construction, dimension X = 22 mm	412	432	left and right	1 ea.	9078721
