- Apertura desplazada para aplicaciones con tiradores de puerta o listones de tirador (desplazamiento de puerta: 45 mm)
- Apertura superpuesta para aplicaciones sin tirador y uso de cajones (desplazamiento de puerta: 0 mm)

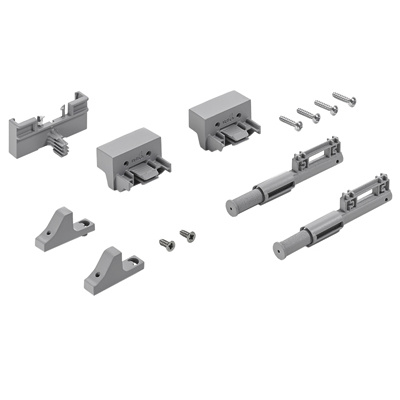

- Sistema de guía bajo el estante inferior STB 11
- Set con distancia de centro de puerta EB 34 mm y EB 37 mm con tornillos de sujeción para puertas de marco de aluminio
Set compuesto de:
- 2 carros de rodadura para una puerta delantera
- 2 carros de guía para una puerta delantera
- Material de fijación
Indicaciones:

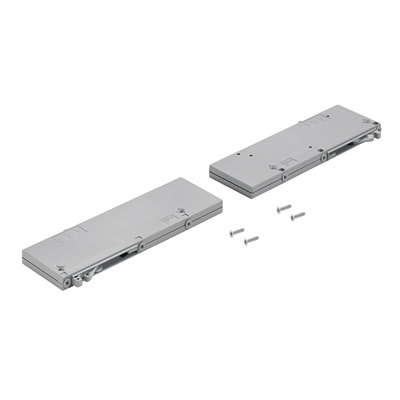

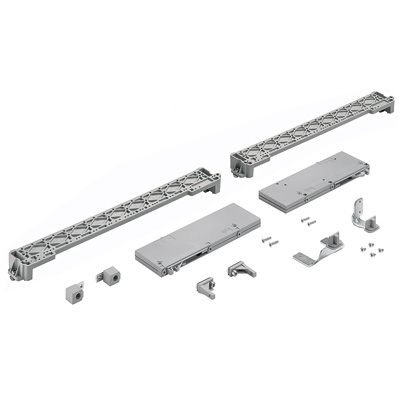

- Silent System y los perfiles deben pedirse por separado
- 2- / 3 puertas: pedir un set para puerta delantera
Hettich CAD
Hettich Technical Assistant - TopLine L
Added to Your Shopping Cart
Technical details
| Door centre distance (EB) | 37 mm |
| Door position | front |
| Height adjustment | Yes |
| Door mounting option | overlay |
| Door weight per door (max) | 50 kg |
| Components | Fitting sets |
| Minimum door width in | 700 mm |
| Max. door width | 1,500 mm |
| Door height (max) | 2,600 mm |
| Max. door thickness | 25 mm |
| Number of tracks | 2 |
| Door mounting option | overlay |
| EAN | 4023149004933 |
| Order no. | 9206502 |
| PU | 1 ea. |
