Home
Drawer systems
Systems for office furniture
Storage unit system Systema Top 2000
drawer runners

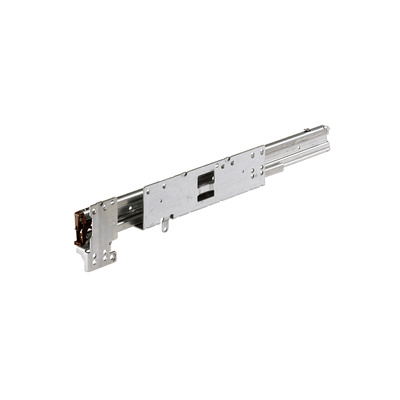

Quadro Duplex 70 drawer runner, dimension X = 13 mm, left

Components

Drawer runners (4)

Installed width

dimension X = 13 mm (3)
dimension X = 22 mm (1)

Type of drawer runner

Over extension runner (4)

Application

Storage unit, depth 600 mm (4)

Finish

galvanised (4)

Type of runner

Concealed runner (4)

Load capacity kg

65 kg (4)

Cabinet side

left (1)
left and right (2)
right (1)

Material

steel (4)

Quadro Duplex 70 Kg over extension runners

Filter

Design

- for cabinet body construction, dimension X = 13 mm for wall-to-wall construction, dimension X = 22 mm

Min. installed depth in behind front panels

- 538

Min. installed depth in behind doors

- 558

Mounting side

- left right left and right

- 12 ea. 1 ea.

Order no.

- 1049250 1049251 9078717 9078719

	Product	Design	Min. installed depth in behind front panels	Min. installed depth in behind doors	Mounting side	PU	Order no.
600002084	Quadro Duplex 70 drawer runner, dimension X = 13 mm, left	for cabinet body construction, dimension X = 13 mm	538	558	left	12 ea.	1049250
600002088	Quadro Duplex 70 drawer runner, dimension X = 13 mm, right	for cabinet body construction, dimension X = 13 mm	538	558	right	12 ea.	1049251
600002100	Quadro Duplex 70 drawer runner, dimension X = 13 mm, left and right	for cabinet body construction, dimension X = 13 mm	538	558	left and right	1 ea.	9078717
600002104	Quadro Duplex 70 drawer runner, dimension X = 22 mm, left and right	for wall-to-wall construction, dimension X = 22 mm	538	558	left and right	1 ea.	9078719
