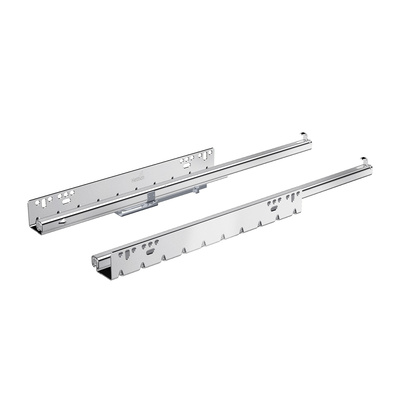

Quadro 25 with Silent System, partial extension runner for wooden drawer (slide on installation, drawer side profile thickness ≤ 16 mm)

Filter

Load class

- 25 kg

Nominal length

- 250 mm 300 mm 320 mm 350 mm 380 mm 420 mm 450 mm 480 mm 500 mm 520 mm 550 mm 400 mm

Mounting side

- left right

- 30 ea.

Order no.

- 9105661 9105662 9105665 9105666 9105667 9105668 9105669 9105670 9105671 9105672 9105675 9105676 9105677 9105678 9105679 9105680 9105682 9105683 9105684 9105685 9105686 9105687 9191964 9191965 9191966 9191967 9191968 9191969 9191970 9191991 9191992 9191993

	Product	Load class	Nominal length	Mounting side	PU	Order no.
510005592	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 250 mm, left	25 kg	250 mm	left	30 ea.	9105661
510005600	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 250 mm, right	25 kg	250 mm	right	30 ea.	9105662
510005624	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 300 mm, left	25 kg	300 mm	left	30 ea.	9105665
510005632	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 300 mm, right	25 kg	300 mm	right	30 ea.	9105666
510005640	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 320 mm, left	25 kg	320 mm	left	30 ea.	9105667
510005648	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 320 mm, right	25 kg	320 mm	right	30 ea.	9105668
510005656	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 350 mm, left	25 kg	350 mm	left	30 ea.	9105669
510005664	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 350 mm, right	25 kg	350 mm	right	30 ea.	9105670
510005672	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 380 mm, left	25 kg	380 mm	left	30 ea.	9105671
510005680	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 380 mm, right	25 kg	380 mm	right	30 ea.	9105672
510005704	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 420 mm, left	25 kg	420 mm	left	30 ea.	9105675
510005712	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 420 mm, right	25 kg	420 mm	right	30 ea.	9105676
510005720	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 450 mm, left	25 kg	450 mm	left	30 ea.	9105677
510005728	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 450 mm, right	25 kg	450 mm	right	30 ea.	9105678
510005736	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 480 mm, left	25 kg	480 mm	left	30 ea.	9105679
510005744	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 480 mm, right	25 kg	480 mm	right	30 ea.	9105680
510005752	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 500 mm, left	25 kg	500 mm	left	30 ea.	9105682
510005760	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 500 mm, right	25 kg	500 mm	right	30 ea.	9105683
510005768	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 520 mm, left	25 kg	520 mm	left	30 ea.	9105684
510005776	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 520 mm, right	25 kg	520 mm	right	30 ea.	9105685
510005784	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 550 mm, left	25 kg	550 mm	left	30 ea.	9105686
510005792	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 550 mm, right	25 kg	550 mm	right	30 ea.	9105687
510005800	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 380 mm, left	25 kg	380 mm	left	30 ea.	9191964
510005804	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 380 mm, right	25 kg	380 mm	right	30 ea.	9191965
510005808	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 400 mm, left	25 kg	400 mm	left	30 ea.	9191966
510005812	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 400 mm, right	25 kg	400 mm	right	30 ea.	9191967
510005816	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 450 mm, left	25 kg	450 mm	left	30 ea.	9191968
510005820	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 450 mm, right	25 kg	450 mm	right	30 ea.	9191969
510005824	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 500 mm, left	25 kg	500 mm	left	30 ea.	9191970
510005828	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 500 mm, right	25 kg	500 mm	right	30 ea.	9191991
510005832	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 550 mm, left	25 kg	550 mm	left	30 ea.	9191992
510005836	Quadro 25 with Silent System, slide on installation, EB 20 (drawer side profile thickness ≤ 16mm), 550 mm, right	25 kg	550 mm	right	30 ea.	9191993

Quadro 25 with Silent System, partial extension runner for wooden drawer (slide on installation, drawer side profile thickness ≤ 16 mm)
