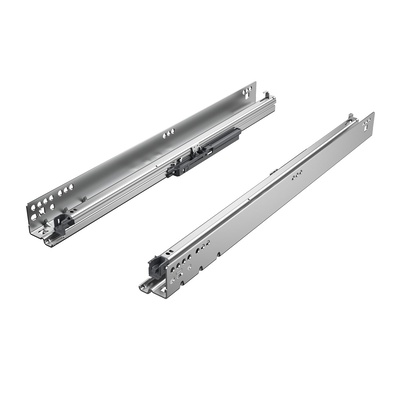

Quadro 2D V6 with Silent System (optional Push to open Silent), slide on installation, face frame application / inch lengths

Filter

Load class

- 90 lbs

Nominal length in inches

- 9 12 15 18 21 24

Nominal length

- 229 mm 305 mm 381 mm 457 mm 533 mm 610 mm

Mounting side

- left and right left right

- 1 ea. 20 ea. 10 ea.

Order no.

- 9304257 9304260 9304266 9304274 9304282 9304286 9304255 9304256 9304258 9304259 9304261 9304262 9304271 9304272 9304280 9304281 9304283 9304284 9304292 9304293 9304295 9304296 9304298 9304299 9304301 9304302 9304304 9304305

	Product	Load class	Nominal length in inches	Nominal length	Mounting side	PU	Order no.
510002258	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 9", left and right	90 lbs	9	229 mm	left and right	1 ea.	9304257
510002259	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 12", left and right	90 lbs	12	305 mm	left and right	1 ea.	9304260
510002260	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 15", left and right	90 lbs	15	381 mm	left and right	1 ea.	9304266
510002261	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 18", left and right	90 lbs	18	457 mm	left and right	1 ea.	9304274
510002262	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 21", left and right	90 lbs	21	533 mm	left and right	1 ea.	9304282
510002263	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 24", left and right	90 lbs	24	610 mm	left and right	1 ea.	9304286
510002264	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 9", left	90 lbs	9	229 mm	left	20 ea.	9304255
510002265	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 9", right	90 lbs	9	229 mm	right	20 ea.	9304256
510002266	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 12", left	90 lbs	12	305 mm	left	10 ea.	9304258
510002267	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 12", right	90 lbs	12	305 mm	right	10 ea.	9304259
510002268	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 15", left	90 lbs	15	381 mm	left	10 ea.	9304261
510002269	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 15", right	90 lbs	15	381 mm	right	10 ea.	9304262
510002270	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 18", left	90 lbs	18	457 mm	left	10 ea.	9304271
510002271	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 18", right	90 lbs	18	457 mm	right	10 ea.	9304272
510002272	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 21", left	90 lbs	21	533 mm	left	10 ea.	9304280
510002273	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 21", right	90 lbs	21	533 mm	right	10 ea.	9304281
510002274	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 24", left	90 lbs	24	610 mm	left	10 ea.	9304283
510002275	Quadro 2D V6 with Silent System (optionally with Push to open Silent), IW 21, for face frame and frameless application, 24", right	90 lbs	24	610 mm	right	10 ea.	9304284
510002281	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 9", left	90 lbs	9	229 mm	left	20 ea.	9304292
510002282	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 9", right	90 lbs	9	229 mm	right	20 ea.	9304293
510002283	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 12", left	90 lbs	12	305 mm	left	10 ea.	9304295
510002284	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 12", right	90 lbs	12	305 mm	right	10 ea.	9304296
510002285	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 15", left	90 lbs	15	381 mm	left	10 ea.	9304298
510002286	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 15", right	90 lbs	15	381 mm	right	10 ea.	9304299
510002287	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 18", left	90 lbs	18	457 mm	left	10 ea.	9304301
510002288	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 18", right	90 lbs	18	457 mm	right	10 ea.	9304302
510002289	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 21", left	90 lbs	21	533 mm	left	10 ea.	9304304
510002290	Quadro V6 Tab with Silent System, IW 21, for face frame and frameless application, 21", right	90 lbs	21	533 mm	right	10 ea.	9304305

Quadro 2D V6 with Silent System (optional Push to open Silent), slide on installation, face frame application / inch lengths
