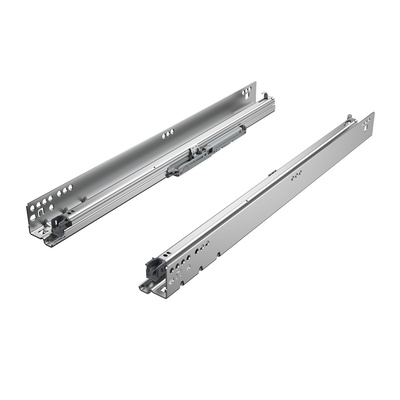

Quadro V6 with Push to open, slide on installation, face frame application / inch lengths

Load class

-

- 90 lbs

Nominal length in inches

-

- 12 15 18 21 24

Nominal length

-

- 305 mm 381 mm 457 mm 533 mm 610 mm

Mounting side

-

- left right

PU

-

- 10 ea.

Order no.

-

- 9304312 9304313 9304315 9304316 9304319 9304320 9304322 9304323 9304308 9304309

Search

		Product	Load class	Nominal length in inches	Nominal length	Mounting side	PU	Order no.
	510002297	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 12", left	90 lbs	12	305 mm	left	10 ea.	9304312
	510002298	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 12", right	90 lbs	12	305 mm	right	10 ea.	9304313
	510002299	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 15", left	90 lbs	15	381 mm	left	10 ea.	9304315
	510002300	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 15", right	90 lbs	15	381 mm	right	10 ea.	9304316
	510002301	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 18", left	90 lbs	18	457 mm	left	10 ea.	9304319
	510002302	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 18", right	90 lbs	18	457 mm	right	10 ea.	9304320
	510002303	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 21", left	90 lbs	21	533 mm	left	10 ea.	9304322
	510002304	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 21", right	90 lbs	21	533 mm	right	10 ea.	9304323
	510002305	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 24", left	90 lbs	24	610 mm	left	10 ea.	9304308
	510002306	Quadro V6 with Push to open, IW 21, for face frame and frameless application, 24", right	90 lbs	24	610 mm	right	10 ea.	9304309
